src/extio.c File Reference

• External I/O abstract

More...

#include "extio.h"
#include "tll_common.h"
#include "tll_config.h"
#include "queue.h"
#include "isrDisp.h"
#include <fpga_loader.h>
#include <eventManager.h>

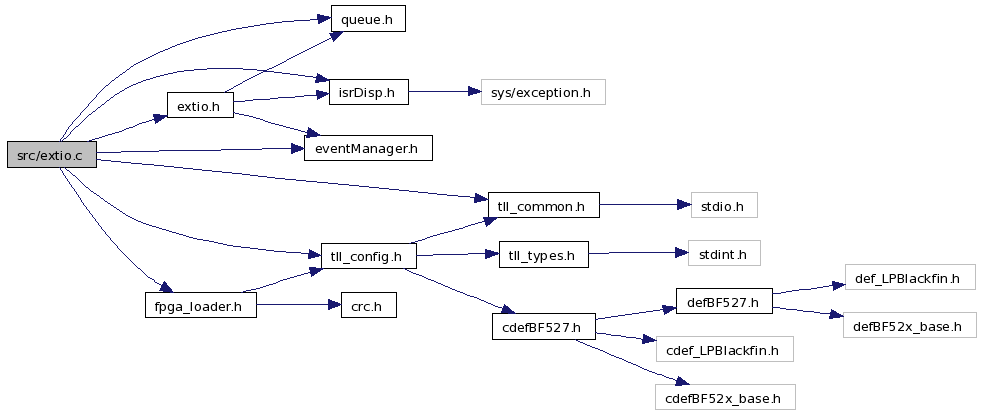

Include dependency graph for extio.c:

Defines
#define	OUTPUT_BITS   (0xFF)
	LEDs are mapped to lower 8 bits of the register, push bottons and switches are mapped to higher 8 bits of the register.
#define	INPUT_BITS   (0xFF00)
#define	MAP_LED_TO_BIT(LED)   (0x1<<LED)
	convert from LED number to bit in the bit pattern
#define	MAP_INPUT_TO_BIT(INP)   (0x1 << 8) << ((INP - 1) >> 1)
	convert from Input Event number to bit mask
#define	BIT_CLEAR(REGISER, MASK)   REGISTER = REGISTER & ~(MASK)
	clear bit(s) defined by mask
#define	BIT_SET(REGISER, MASK)   REGISTER = REGISTER | MASK
	set bit(s) defined by mask
Functions
int	extio_eventPut (extio_input event)
	Put an external io event to a queue Put an external io event to a queue.
void	extio_isr (void)
	extio isr (to be called from dispatcher)
int	extio_init (isrDisp_t *pIsrDisp)
	Initialize external i/o initialize GPIO port F.
int	extio_startup (void)
	startup external i/o startup GPIO port F
int	extio_ledConfig (extio_output iotype)
	Configure LED as an output.
int	extio_swConfig (extio_input itype)
	Configure switch as an input.
int	extio_ledOn (extio_output led)
	Turn on one led Turn on one led according to input parameter.
int	extio_ledOff (extio_output led)
	Turn off one led Turn off one led according to input parameter.
int	extio_ledToggle (extio_output led)
	Toggle one led Toggle one led according to input parameter.
iostatus	extio_ledStatus (extio_output led)
	Check led status Check led status.
int	extio_ledGroupOn (unsigned char ledMask)
	Turn on group of leds Turn on group of leds according to ledMask.
int	extio_ledGroupOff (unsigned char ledMask)
	Turn off group of leds Turn off group of leds according to ledMask.
int	extio_ledGroupToggle (unsigned char ledMask)
	Toggle group of leds Toggle group of leds according to ledMask.
unsigned char	extio_ledGroupStatus (unsigned char ledMask)
	Check the status of a group of leds Check the status of a group of leds.
unsigned char	extio_switchGroupStatusGet (unsigned char switchMask)
	Query the current status of switch.
int	extio_eventSubscribe (extio_input IOInput)
	Subscribe an external io event to the callback table Subscribe an external io event to the callback table.
int	extio_eventUnsubscribe (extio_input IOInput)
	Unsubscribe an external io event to the callback table Unsubscribe an external io event to the callback table.
int	extio_callbackRegister (extio_input IOInput, tFuncPtr pFunc, void *pArg)
	Register call back function to the callback table Register call back function to the callback table.
int	extio_callbackUnregister (extio_input IOInput, tFuncPtr pFunc, void *pArg)
	Unregister call back function to the callback table Unregister call back function to the callback table.
int	extio_eventGet (extio_input *pEvent)
	Get an external io event from a queue Get an external io event from a queue.
iostatus	extio_switchStatusGet (extio_input IOInput)
	Query the current status of a switch.
Variables
extio_t	extio_global
	extio global variable, EXTIO is a singleton only a single instance hence using a global one global variable is sufficient

---

Detailed Description

• External I/O abstract

Target TLL6527v1-0 Compiler: VDSP++ Output format: VDSP++ "*.dxe"

Author:

Enqiang Sun

Date:

April 6th, 2010

LastChange:

Id

extio.c 967 2012-04-10 20:29:10Z rkangralkar

---

Define Documentation

#define BIT_CLEAR	(	REGISER,
		MASK		)	REGISTER = REGISTER & ~(MASK)

clear bit(s) defined by mask

#define BIT_SET	(	REGISER,
		MASK		)	REGISTER = REGISTER | MASK

set bit(s) defined by mask

#define INPUT_BITS   (0xFF00)

#define MAP_INPUT_TO_BIT

(

INP

)

(0x1 << 8) << ((INP - 1) >> 1)

convert from Input Event number to bit mask

#define MAP_LED_TO_BIT

(

LED

)

(0x1<<LED)

convert from LED number to bit in the bit pattern

#define OUTPUT_BITS   (0xFF)

LEDs are mapped to lower 8 bits of the register, push bottons and switches are mapped to higher 8 bits of the register.

---

Function Documentation

int extio_callbackRegister	(	extio_input	IOInput,
		tFuncPtr	pFunc,
		void *	pArg
	)

Register call back function to the callback table

• Register call back function to the callback table.

Parameters:

Parameters:

	IOInput	the event id
	pFunc	callback function pointer
	pArg	callback function parameter

Returns:

Zero on success. Negative value on failure.

return error if GPIO is used in a different function

register only if nothing is registered yet

int extio_callbackUnregister	(	extio_input	IOInput,
		tFuncPtr	pFunc,
		void *	pArg
	)

Unregister call back function to the callback table

• Unregister call back function to the callback table.

Parameters:

Parameters:

	IOInput	the event id
	pFunc	callback function pointer
	pArg	callback function parameter

Returns:

Zero on success. Negative value on failure.

int extio_eventGet

(

extio_input *

pEvent

)

Get an external io event from a queue

• Get an external io event from a queue.

Parameters:

Parameters:

pEvent

the pointer to the io event

Returns:

the pointer to the external io event

int extio_eventPut

(

extio_input

event

)

Put an external io event to a queue

• Put an external io event to a queue.

Parameters:

Parameters:

event

the event id

Returns:

Zero on success. Negative value on failure.

int extio_eventSubscribe

(

extio_input

IOInput

)

Subscribe an external io event to the callback table

• Subscribe an external io event to the callback table.

Parameters:

Parameters:

IOInput

the event id

Returns:

Zero on success. Negative value on failure.

register event put as a call back, it will place the according event in queue

int extio_eventUnsubscribe

(

extio_input

IOInput

)

Unsubscribe an external io event to the callback table

• Unsubscribe an external io event to the callback table.

Parameters:

Parameters:

IOInput

the event id

Returns:

Zero on success. Negative value on failure.

int extio_init

(

isrDisp_t *

pIsrDisp

)

Initialize external i/o

• initialize GPIO port F.

Parameters:

Parameters:

pIsrDisp

pointer to ISR Dispatcher

Returns:

Zero on success. Negative value on failure.

initialize event queue

register own ISR with isr dispatcher

initialize the event table

return error if GPIO is used in a different function

Default initialization Set 0-7 as OUTPUT 8-15 as input

void extio_isr

(

void

)

extio isr (to be called from dispatcher)

Parameters:

Parameters:

pThis

pointer to own object

Returns:

None

lowest button input

int extio_ledConfig

(

extio_output

iotype

)

Configure LED as an output.

Parameters:

Parameters:

iotype

LED to configure

return error if GPIO is used in a different function

int extio_ledGroupOff

(

unsigned char

ledMask

)

Turn off group of leds

• Turn off group of leds according to ledMask.

Parameters:

Parameters:

ledMask

led mask

Returns:

Zero on success. Negative value on failure.

int extio_ledGroupOn

(

unsigned char

ledMask

)

Turn on group of leds

• Turn on group of leds according to ledMask.

Parameters:

Parameters:

ledMask

led mask

Returns:

Zero on success. Negative value on failure.

unsigned char extio_ledGroupStatus

(

unsigned char

ledMask

)

Check the status of a group of leds

• Check the status of a group of leds.

Parameters:

Parameters:

ledMask

led mask

Returns:

an unsigned char indicating the leds status.

int extio_ledGroupToggle

(

unsigned char

ledMask

)

Toggle group of leds

• Toggle group of leds according to ledMask.

Parameters:

Parameters:

ledMask

led mask

Returns:

Zero on success. Negative value on failure.

int extio_ledOff

(

extio_output

led

)

Turn off one led

• Turn off one led according to input parameter.

Parameters:

Parameters:

iotype

led number

Returns:

Zero on success. Negative value on failure.

int extio_ledOn

(

extio_output

led

)

Turn on one led

• Turn on one led according to input parameter.

Parameters:

Parameters:

iotype

led number

Returns:

Zero on success. Negative value on failure.

iostatus extio_ledStatus

(

extio_output

led

)

Check led status

• Check led status.

Parameters:

Parameters:

iotype

led number

Returns:

iostatus of the led

int extio_ledToggle

(

extio_output

led

)

Toggle one led

• Toggle one led according to input parameter.

Parameters:

Parameters:

iotype

led number

Returns:

Zero on success. Negative value on failure.

int extio_startup

(

void

)

startup external i/o

• startup GPIO port F

Parameters:

Returns:

Zero on success. Negative value on failure.

int extio_swConfig

(

extio_input

itype

)

Configure switch as an input.

Parameters:

Parameters:

iotype

switch to configure

return error if GPIO is used in a different function

unsigned char extio_switchGroupStatusGet

(

unsigned char

switchMask

)

Query the current status of switch.

Parameters:

Parameters:

IOInput

switch to query (could be pushed or released)

Returns:

status of the switch EXTIO_SWITCH_ON if pushed / switched on EXTIO_SWITCH_OFF if not pushed / switched off

iostatus extio_switchStatusGet

(

extio_input

IOInput

)

Query the current status of a switch.

Parameters:

Parameters:

IOInput

switch to query (could be pushed or released)

Returns:

status of the switch EXTIO_SWITCH_ON if pushed / switched on EXTIO_SWITCH_OFF if not pushed / switched off

---

Variable Documentation

extio_t extio_global

extio global variable, EXTIO is a singleton only a single instance hence using a global one global variable is sufficient

---
