inc/isrDisp.h File Reference

#include <sys/exception.h>

Include dependency graph for isrDisp.h:

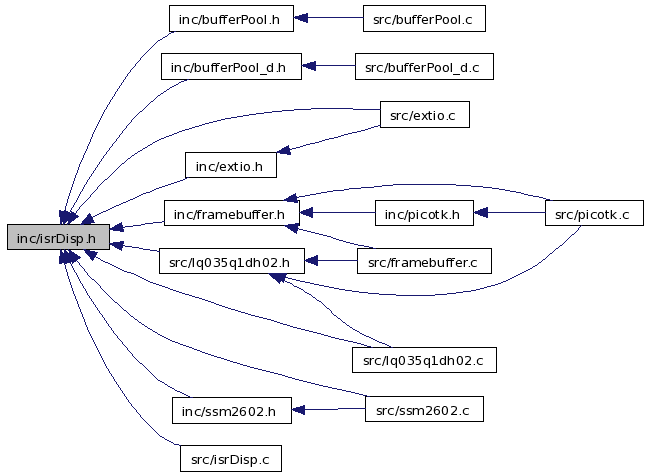

This graph shows which files directly or indirectly include this file:

Data Structures
struct	isrDisp_call_t
struct	isrDisp_t
	Dispatchert object. More...
Typedefs
typedef void(*)	tFuncPtr (void *)
	function pointer and argument to call
Enumerations
enum	e_isr_t {   ISR_PLL_WAKEUP_INTERRUPT, ISR_DMA_ERROR_0, ISR_DMAR0_BLOCK_INTERRUPT, ISR_DMAR1_BLOCK_INTERRUPT,   ISR_DMAR0_OVERFLOW_ERROR, ISR_DMAR1_OVERFLOW_ERROR, ISR_PPI_STATUS, ISR_MAC_STATUS,   ISR_SPORT0_STATUS, ISR_SPORT1_STATUS, RESERVED_10, RESERVED_11,   ISR_UART0_STATUS, ISR_UART1_STATUS, ISR_REAL_TIME_CLOCK, ISR_DMA0_PPI_NFC,   ISR_DMA3_SPORT0_RX, ISR_DMA4_SPORT0_TX, ISR_DMA5_SPORT1_RX, ISR_DMA6_SPORT1_TX,   TWI_INTERRUPT, ISR_DMA7_SPI, ISR_DMA8_UART0_RX, ISR_DMA9_UART0_TX,   ISR_DMA10_UART1_RX, ISR_DMA11_UART1_TX, ISR_OTP, ISR_GP_COUNTER,   ISR_DMA1_MAC_RX_HOSTDP, ISR_PORT_H_INTERRUPT_A, ISR_DMA2_MAC_TX_NFC, ISR_PORT_H_INTERRUPT_B,   SIC_ISR0_MAX, ISR_TIMER0 = SIC_ISR0_MAX, ISR_TIMER1, ISR_TIMER2,   ISR_TIMER3, ISR_TIMER4, ISR_TIMER5, ISR_TIMER6,   ISR_TIMER7, ISR_PORT_G_INTERRUPT_A, ISR_PORT_G_INTERRUPT_B, ISR_MDMA0_STREAM_0_INTERRUPT,   ISR_MDMA1_STREAM_0_INTERRUPT, ISR_SOFTWARE_WATCHDOG_INTERRUPT, ISR_PORT_F_INTERRUPT_A, ISR_PORT_F_INTERRUPT_B,   ISR_SPI_STATUS, ISR_NFC_STATUS, ISR_HOSTDP_STATUS, ISR_HOREAD_DONE_INTERRUPT,   RESERVED_19, ISR_USB_INT0_INTERRUPT, ISR_USB_INT1_INTERRUPT, ISR_USB_INT2_INTERRUPT,   ISR_USB_DMAINT, ISR_MAX }
	The type of interrupts handled by the SIC. More...
Functions
int	isrDisp_init (isrDisp_t *pThis)
	Initialize isr dispatcher Parameters:.
int	isrDisp_registerCallback (isrDisp_t *pThis, e_isr_t id, tFuncPtr pFunc, void *pArg)
	Register interrupt handler for ISR for DMA 3 Parameters:.
int	isrDisp_unregisterCallback (isrDisp_t *pThis, e_isr_t id)
	isrDisp_unregisterCallback The function does parameter check and then unregisters the function.
int	isrDisp_printIrqFreq (isrDisp_t *pThis)
	isrDisp_printIrqFreq prints number of occured interrupts for each registered IRQ

---

Typedef Documentation

typedef void(*) tFuncPtr(void *)

function pointer and argument to call

---

Enumeration Type Documentation

enum e_isr_t

The type of interrupts handled by the SIC.

Enumerator:

ISR_PLL_WAKEUP_INTERRUPT
ISR_DMA_ERROR_0
ISR_DMAR0_BLOCK_INTERRUPT
ISR_DMAR1_BLOCK_INTERRUPT
ISR_DMAR0_OVERFLOW_ERROR
ISR_DMAR1_OVERFLOW_ERROR
ISR_PPI_STATUS
ISR_MAC_STATUS
ISR_SPORT0_STATUS
ISR_SPORT1_STATUS
RESERVED_10
RESERVED_11
ISR_UART0_STATUS
ISR_UART1_STATUS
ISR_REAL_TIME_CLOCK
ISR_DMA0_PPI_NFC
ISR_DMA3_SPORT0_RX
ISR_DMA4_SPORT0_TX
ISR_DMA5_SPORT1_RX
ISR_DMA6_SPORT1_TX
TWI_INTERRUPT
ISR_DMA7_SPI
ISR_DMA8_UART0_RX
ISR_DMA9_UART0_TX
ISR_DMA10_UART1_RX
ISR_DMA11_UART1_TX
ISR_OTP
ISR_GP_COUNTER
ISR_DMA1_MAC_RX_HOSTDP
ISR_PORT_H_INTERRUPT_A
ISR_DMA2_MAC_TX_NFC
ISR_PORT_H_INTERRUPT_B
SIC_ISR0_MAX
ISR_TIMER0
ISR_TIMER1
ISR_TIMER2
ISR_TIMER3
ISR_TIMER4
ISR_TIMER5
ISR_TIMER6
ISR_TIMER7
ISR_PORT_G_INTERRUPT_A
ISR_PORT_G_INTERRUPT_B
ISR_MDMA0_STREAM_0_INTERRUPT
ISR_MDMA1_STREAM_0_INTERRUPT
ISR_SOFTWARE_WATCHDOG_INTERRUPT
ISR_PORT_F_INTERRUPT_A
ISR_PORT_F_INTERRUPT_B
ISR_SPI_STATUS
ISR_NFC_STATUS
ISR_HOSTDP_STATUS
ISR_HOREAD_DONE_INTERRUPT
RESERVED_19
ISR_USB_INT0_INTERRUPT
ISR_USB_INT1_INTERRUPT
ISR_USB_INT2_INTERRUPT
ISR_USB_DMAINT
ISR_MAX

---

Function Documentation

int isrDisp_init

(

isrDisp_t *

pThis

)

Initialize isr dispatcher Parameters:.

Parameters:

pThis

pointer to own object

Returns:

Zero on success. Negative value on failure.

int isrDisp_printIrqFreq

(

isrDisp_t *

pThis

)

isrDisp_printIrqFreq prints number of occured interrupts for each registered IRQ

Parameters:

Returns:

None

int isrDisp_registerCallback	(	isrDisp_t *	pThis,
		e_isr_t	id,
		tFuncPtr	pFunc,
		void *	pArg
	)

Register interrupt handler for ISR for DMA 3 Parameters:.

Parameters:

	pThis	pointer to own object
	pFunc	pointer to function to call
	pArg	pointer to argument passed on call

Returns:

Zero on success. Negative value on failure.

Parameter Check

Parameter Check

Assign the new function pointer to the ISR Dispatcher

find out which isr mask has to be set to enable the interrupt

int isrDisp_unregisterCallback	(	isrDisp_t *	pThis,
		e_isr_t	id
	)

isrDisp_unregisterCallback The function does parameter check and then unregisters the function.

We ISR wont be able to interrupt the function again Parameters:

Returns:

None

Parameter Check

Find out whcih register has to be used to disable the interrupt

Unregister the function from the table

---
