inc/extio.h File Reference

#include "queue.h"
#include "isrDisp.h"
#include <eventManager.h>

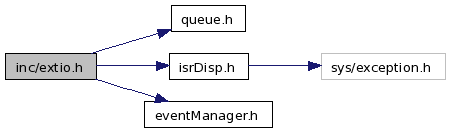

Include dependency graph for extio.h:

This graph shows which files directly or indirectly include this file:


Data Structures
struct	extioDisp_call
	function pointer and argument to call More...
struct	extio
	Structure definition for the external io module. More...
Defines
#define	EXTIO_SW0_HIGH EXTIO_PB0_HIGH
#define	EXTIO_SW0_LOW EXTIO_PB0_LOW
#define	EXTIO_SW1_HIGH EXTIO_PB1_HIGH
#define	EXTIO_SW1_LOW EXTIO_PB1_LOW
#define	EXTIO_SW2_HIGH EXTIO_PB2_HIGH
#define	EXTIO_SW2_LOW EXTIO_PB2_LOW
#define	EXTIO_SW3_HIGH EXTIO_PB3_HIGH
#define	EXTIO_SW3_LOW EXTIO_PB3_LOW
Typedefs
typedef extioDisp_call	extioDisp_call_t
	function pointer and argument to call
typedef extio	extio_t
	Structure definition for the external io module.
Enumerations
enum	extio_output { EXTIO_LED_FIRST = 0, EXTIO_LED0 = 0, EXTIO_LED1 = 1, EXTIO_LED2 = 2, EXTIO_LED3 = 3, EXTIO_LED4 = 4, EXTIO_LED5 = 5, EXTIO_LED6 = 6, EXTIO_LED7 = 7, EXTO_LED_INVALID = 8 }
	Outputs on the External IO. More...
enum	extio_input { EXTIO_INPUT_FIRST = 1, EXTIO_PB0_HIGH = EXTIO_INPUT_FIRST, EXTIO_PB0_LOW = 2, EXTIO_PB1_HIGH = 3, EXTIO_PB1_LOW = 4, EXTIO_SW2_HIGH = 5, EXTIO_SW2_LOW = 6, EXTIO_SW3_HIGH = 7, EXTIO_SW3_LOW = 8, EXTIO_SW4_HIGH = 9, EXTIO_SW4_LOW = 10, EXTIO_SW5_HIGH = 11, EXTIO_SW5_LOW = 12, EXTIO_SW6_HIGH = 13, EXTIO_SW6_LOW = 14, EXTIO_SW7_HIGH = 15, EXTIO_SW7_LOW = 16, EXTIO_INVALID = 17 }
	Input events from external IO. More...
enum	iostatus { EXTIO_LED_OFF = 0, EXTIO_SWITCH_OFF = 0, EXTIO_LED_ON = 1, EXTIO_SWITCH_ON = 1 }
	io status More...
Functions
int	extio_init (isrDisp_t *pIsrDisp)
	Initialize external i/o initialize GPIO port F.
int	extio_startup (void)
	startup external i/o startup GPIO port F
int	extio_ledConfig (extio_output iotype)
	Configure LED as an output.
int	extio_ledOn (extio_output)
	Turn on one led Turn on one led according to input parameter.
int	extio_ledOff (extio_output)
	Turn off one led Turn off one led according to input parameter.
int	extio_ledToggle (extio_output)
	Toggle one led Toggle one led according to input parameter.
iostatus	extio_ledStatus (extio_output)
	Check led status Check led status.
int	extio_ledGroupOn (unsigned char ledMask)
	Turn on group of leds Turn on group of leds according to ledMask.
int	extio_ledGroupOff (unsigned char ledMask)
	Turn off group of leds Turn off group of leds according to ledMask.
int	extio_ledGroupToggle (unsigned char ledMask)
	Toggle group of leds Toggle group of leds according to ledMask.
unsigned char	extio_ledGroupStatus (unsigned char ledMask)
	Check the status of a group of leds Check the status of a group of leds.
int	extio_eventSubscribe (extio_input IOInput)
	Subscribe an external io event to the callback table Subscribe an external io event to the callback table.
int	extio_eventUnsubscribe (extio_input IOInput)
	Unsubscribe an external io event to the callback table Unsubscribe an external io event to the callback table.
int	extio_callbackRegister (extio_input IOInput, tFuncPtr pFunc, void *pArg)
	Register call back function to the callback table Register call back function to the callback table.
int	extio_callbackUnregister (extio_input IOInput, tFuncPtr pFunc, void *pArg)
	Unregister call back function to the callback table Unregister call back function to the callback table.
int	extio_eventGet (extio_input *pEvent)
	Get an external io event from a queue Get an external io event from a queue.
iostatus	extio_switchStatusGet (extio_input IOInput)
	Query the current status of a switch.
unsigned char	extio_switchGroupStatusGet (unsigned char switchMask)
	Query the current status of switch.
int	extio_swConfig (extio_input itype)
	Configure switch as an input.

Define Documentation

#define EXTIO_SW0_HIGH EXTIO_PB0_HIGH

#define EXTIO_SW0_LOW EXTIO_PB0_LOW

#define EXTIO_SW1_HIGH EXTIO_PB1_HIGH

#define EXTIO_SW1_LOW EXTIO_PB1_LOW

#define EXTIO_SW2_HIGH EXTIO_PB2_HIGH

#define EXTIO_SW2_LOW EXTIO_PB2_LOW

#define EXTIO_SW3_HIGH EXTIO_PB3_HIGH

#define EXTIO_SW3_LOW EXTIO_PB3_LOW

Typedef Documentation

typedef struct extio extio_t

Structure definition for the external io module.

typedef struct extioDisp_call extioDisp_call_t

function pointer and argument to call

Enumeration Type Documentation

enum extio_input

Input events from external IO.

Enumerator:

EXTIO_INPUT_FIRST
EXTIO_PB0_HIGH
EXTIO_PB0_LOW
EXTIO_PB1_HIGH
EXTIO_PB1_LOW
EXTIO_SW2_HIGH
EXTIO_SW2_LOW
EXTIO_SW3_HIGH
EXTIO_SW3_LOW
EXTIO_SW4_HIGH
EXTIO_SW4_LOW
EXTIO_SW5_HIGH
EXTIO_SW5_LOW
EXTIO_SW6_HIGH
EXTIO_SW6_LOW
EXTIO_SW7_HIGH
EXTIO_SW7_LOW
EXTIO_INVALID

enum extio_output

Outputs on the External IO.

Enumerator:

EXTIO_LED_FIRST
EXTIO_LED0
EXTIO_LED1
EXTIO_LED2
EXTIO_LED3
EXTIO_LED4
EXTIO_LED5
EXTIO_LED6
EXTIO_LED7
EXTO_LED_INVALID

enum iostatus

io status

Enumerator:

EXTIO_LED_OFF
EXTIO_SWITCH_OFF
EXTIO_LED_ON
EXTIO_SWITCH_ON

Function Documentation

int extio_callbackRegister	(	extio_input	IOInput,
		tFuncPtr	pFunc,
		void *	pArg
	)

Parameters:

Parameters:

	IOInput	the event id
	pFunc	callback function pointer
	pArg	callback function parameter

Returns:: Zero on success. Negative value on failure.

return error if GPIO is used in a different function

int extio_callbackUnregister	(	extio_input	IOInput,
		tFuncPtr	pFunc,
		void *	pArg
	)

Unregister call back function to the callback table

Unregister call back function to the callback table.

Parameters:

Parameters:

	IOInput	the event id
	pFunc	callback function pointer
	pArg	callback function parameter

Returns:: Zero on success. Negative value on failure.

int extio_eventGet ( extio_input * pEvent )

Get an external io event from a queue

Get an external io event from a queue.

Parameters:

Parameters:

pEvent

the pointer to the io event

Returns:: the pointer to the external io event

int extio_eventSubscribe ( extio_input IOInput )

Subscribe an external io event to the callback table

Subscribe an external io event to the callback table.

Parameters:

Parameters:

IOInput

the event id

Returns:: Zero on success. Negative value on failure.

int extio_eventUnsubscribe ( extio_input IOInput )

Unsubscribe an external io event to the callback table

Unsubscribe an external io event to the callback table.

Parameters:

Parameters:

IOInput

the event id

Returns:: Zero on success. Negative value on failure.

int extio_init ( isrDisp_t * pIsrDisp )

Initialize external i/o

initialize GPIO port F.

Parameters:

Parameters:

pIsrDisp

pointer to ISR Dispatcher

Returns:: Zero on success. Negative value on failure.

initialize event queue

initialize the event table

return error if GPIO is used in a different function

Default initialization Set 0-7 as OUTPUT 8-15 as input

int extio_ledConfig ( extio_output iotype )

Configure LED as an output.

Parameters:

Parameters:

iotype

LED to configure

return error if GPIO is used in a different function

int extio_ledGroupOff ( unsigned char ledMask )

Turn off group of leds

Turn off group of leds according to ledMask.

Parameters:

Parameters:

ledMask

led mask

Returns:: Zero on success. Negative value on failure.

int extio_ledGroupOn ( unsigned char ledMask )

Turn on group of leds

Turn on group of leds according to ledMask.

Parameters:

Parameters:

ledMask

led mask

Returns:: Zero on success. Negative value on failure.

unsigned char extio_ledGroupStatus ( unsigned char ledMask )

Check the status of a group of leds

Check the status of a group of leds.

Parameters:

Parameters:

ledMask

led mask

Returns:: an unsigned char indicating the leds status.

int extio_ledGroupToggle ( unsigned char ledMask )

Toggle group of leds

Toggle group of leds according to ledMask.

Parameters:

Parameters:

ledMask

led mask

Returns:: Zero on success. Negative value on failure.

int extio_ledOff ( extio_output led )

Turn off one led

Turn off one led according to input parameter.

Parameters:

Parameters:

iotype

led number

Returns:: Zero on success. Negative value on failure.

int extio_ledOn ( extio_output led )

Turn on one led

Turn on one led according to input parameter.

Parameters:

Parameters:

iotype

led number

Returns:: Zero on success. Negative value on failure.

iostatus extio_ledStatus ( extio_output led )

Check led status

Check led status.

Parameters:

Parameters:

iotype

led number

Returns:: iostatus of the led

int extio_ledToggle ( extio_output led )

Toggle one led

Toggle one led according to input parameter.

Parameters:

Parameters:

iotype

led number

Returns:: Zero on success. Negative value on failure.

int extio_startup ( void )

startup external i/o

startup GPIO port F

Parameters:

Returns:: Zero on success. Negative value on failure.

int extio_swConfig ( extio_input itype )

Configure switch as an input.

Parameters:

Parameters:

iotype

switch to configure

return error if GPIO is used in a different function

unsigned char extio_switchGroupStatusGet ( unsigned char switchMask )

Query the current status of switch.

Parameters:

Parameters:

IOInput

switch to query (could be pushed or released)

Returns:: status of the switch EXTIO_SWITCH_ON if pushed / switched on EXTIO_SWITCH_OFF if not pushed / switched off

iostatus extio_switchStatusGet ( extio_input IOInput )

Query the current status of a switch.

Parameters:

Parameters:

IOInput

switch to query (could be pushed or released)

Returns:: status of the switch EXTIO_SWITCH_ON if pushed / switched on EXTIO_SWITCH_OFF if not pushed / switched off

Generated on 3 Mar 2014 for PAL bare-c Library by

1.4.7
