src/bf52x_spi.c File Reference

#include "bf52x_spi.h"
#include "bf52x_uart.h"

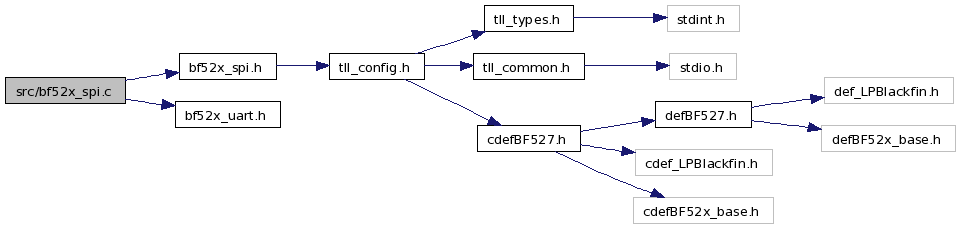

Include dependency graph for bf52x_spi.c:

Defines
#define	IS_TDBR_FULL   (*pSPI_STAT & TXS)
	.c Contains implementation for BF52x SPI master.
#define	IS_RDBR_EMPTY   !(*pSPI_STAT & RXS)
#define	DELAY   0
#define	DELAY_TIME   0x200000
Functions
void	delay (unsigned long value)
int	bf52x_spi_csHigh (enum chipselect cs)
int	bf52x_spi_csLow (enum chipselect cs)
int	bf52x_spi_master_init (bf52x_spi_settings_st *spi_settings)
	Initializes the SPI interface as master.
int	bf52x_spi_master_send16 (unsigned short *data, unsigned short len)
int	bf52x_spi_master_send8 (unsigned char *data, unsigned short len, unsigned char usedelay)
int	bf52x_spi_master_release ()

---

Define Documentation

#define DELAY   0

#define DELAY_TIME   0x200000

#define IS_RDBR_EMPTY   !(*pSPI_STAT & RXS)

#define IS_TDBR_FULL   (*pSPI_STAT & TXS)

.c Contains implementation for BF52x SPI master.

---

Function Documentation

int bf52x_spi_csHigh

(

enum chipselect

cs

)

int bf52x_spi_csLow

(

enum chipselect

cs

)

int bf52x_spi_master_init

(

bf52x_spi_settings_st *

spi_settings

)

Initializes the SPI interface as master.

This function initializes the SPI interface as master and configures the clock based on user input.

Pre-conditions:

• None.

Post condtions:

• Setups the interface for further SPI data transactions.

Parameters:

Parameters:

spi_settings

- see the above bf52x_spi_settings_st structure declaration for.

Returns:

0 if initialization was successful. Else non-zero value.

int bf52x_spi_master_release

(

)

int bf52x_spi_master_send16	(	unsigned short *	data,
		unsigned short	len
	)

int bf52x_spi_master_send8	(	unsigned char *	data,
		unsigned short	len,
		unsigned char	usedelay
	)

void delay

(

unsigned long

value

)

---
