inc/bf52x_uart.h File Reference

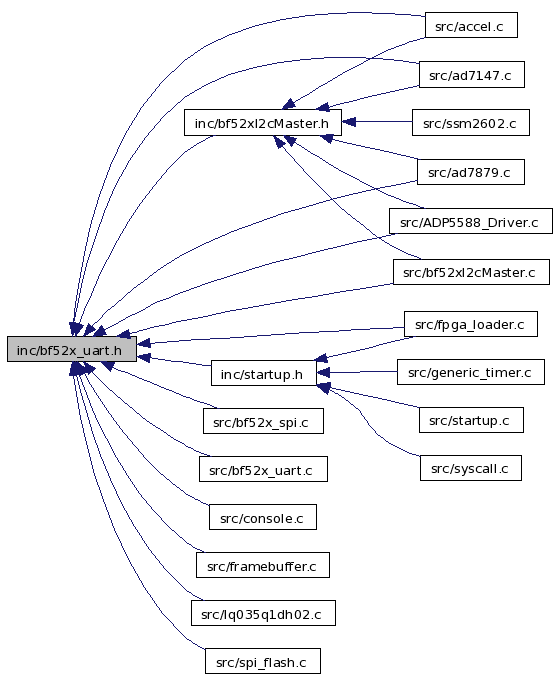

This graph shows which files directly or indirectly include this file:

Data Structures
struct	_bf52x_uart_settings
Defines
#define	BF52X_BAUD_RATE_2400   2400
	.h Contains declarations for BF52X UART driver.
#define	BF52X_BAUD_RATE_4800   4800
#define	BF52X_BAUD_RATE_9600   9600
#define	BF52X_BAUD_RATE_14400   14400
#define	BF52X_BAUD_RATE_19200   19200
#define	BF52X_BAUD_RATE_28800   28800
#define	BF52X_BAUD_RATE_38400   38400
#define	BF52X_BAUD_RATE_57600   57600
#define	BF52X_BAUD_RATE_76800   76800
#define	BF52X_BAUD_RATE_115200   115200
#define	BF52X_BAUD_RATE_230400   230400
#define	BF52X_BAUD_RATE_921600   921600
#define	BF52X_BAUD_RATE_6250000   6250000
Typedefs
typedef _bf52x_uart_settings	bf52x_uart_settings
Functions
int	bf52x_uart_init (bf52x_uart_settings *sett)
	Initialize the uart.
void	bf52x_uart_deinit (void)
	Deinitialize the uart.
int	bf52x_uart_transmit (char *data, unsigned char datalen)
	Transfers the data over uart.
int	bf52x_uart_receive (char *data, unsigned char datalen)
	Receives the data over uart.
int	bf52x_uart_receiveNb (char *data, unsigned char datalen)
	Receives the data over uart.

---

Define Documentation

#define BF52X_BAUD_RATE_115200   115200

#define BF52X_BAUD_RATE_14400   14400

#define BF52X_BAUD_RATE_19200   19200

#define BF52X_BAUD_RATE_230400   230400

#define BF52X_BAUD_RATE_2400   2400

.h Contains declarations for BF52X UART driver.

#define BF52X_BAUD_RATE_28800   28800

#define BF52X_BAUD_RATE_38400   38400

#define BF52X_BAUD_RATE_4800   4800

#define BF52X_BAUD_RATE_57600   57600

#define BF52X_BAUD_RATE_6250000   6250000

#define BF52X_BAUD_RATE_76800   76800

#define BF52X_BAUD_RATE_921600   921600

#define BF52X_BAUD_RATE_9600   9600

---

Typedef Documentation

typedef struct _bf52x_uart_settings bf52x_uart_settings

---

Function Documentation

void bf52x_uart_deinit

(

void

)

Deinitialize the uart.

This function disables the uart by programming the uart global control reg.

Pre-conditions:

• None.

Post condtions:

• Initiates the digital loopback.

Parameters:

Parameters:

sett

- Holds the baud rate and parity information to be used.

Returns:

Zero if the uart is initialized properly. Negative value if the init fails.

int bf52x_uart_init

(

bf52x_uart_settings *

sett

)

Initialize the uart.

This function:- 1. Configures the uart to the baud rate mentioned by the application. 2. Configure for 8 bits, 1 stop bit

Pre-conditions:

• None.

Post condtions:

• Ready to tx/rx over the uart for the user configured settings.

Parameters:

Parameters:

sett

- Holds the baud rate and parity information to be used.

Returns:

Zero if the uart is initialized properly. Negative value if the init fails.

int bf52x_uart_receive	(	char *	data,
		unsigned char	datalen
	)

Receives the data over uart.

This function waits for each byte to be received over uart untill data of length datalen is received. The data received is stored in data.

Pre-conditions:

• None.

Post condtions:

• None.

Parameters:

Parameters:

data

- Pointer to data in which the data will be stored. datalen - Length in bytes to be received.

Returns:

Zero if the data transfer was done. Negative value if the transfer fails.

int bf52x_uart_receiveNb	(	char *	data,
		unsigned char	datalen
	)

Receives the data over uart.

Non blocking receive of serial data. Will return 0 if nothing received.

Pre-conditions:

• None.

Post condtions:

• None.

Parameters:

Parameters:

data

- Pointer to data in which the data will be stored. datalen - max number of bytes to receive

Returns:

Number of bytes received, zero if UART buffer is empty -1 if UART error Negative value if the transfer fails.

int bf52x_uart_transmit	(	char *	data,
		unsigned char	datalen
	)

Transfers the data over uart.

This function transfers the data of total datalen bytes in blocking mode.

Pre-conditions:

• None.

Post condtions:

• None.

Parameters:

Parameters:

data

- Pointer to data to be transmitted. datalen - Length in bytes to be transmitted.

Returns:

Zero if the data transfer was done. Negative value if the transfer fails.

---
