inc/bf52x_spi.h File Reference

#include "tll_config.h"

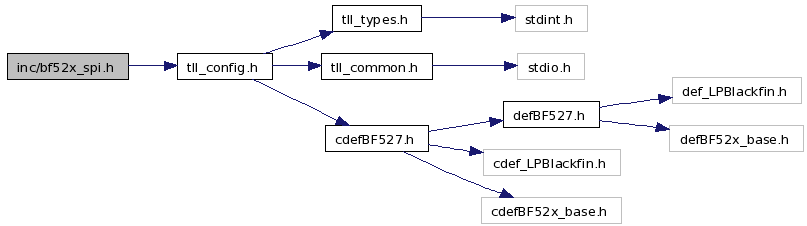

Include dependency graph for bf52x_spi.h:

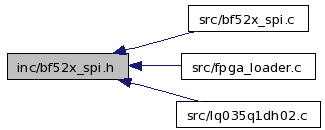

This graph shows which files directly or indirectly include this file:

Data Structures
struct	_bf52x_spi_settings_st
	.h Contains declarations for BF52X SPI driver. More...
Typedefs
typedef _bf52x_spi_settings_st	bf52x_spi_settings_st
	.h Contains declarations for BF52X SPI driver.
Enumerations
enum	chipselect { PH9_J13_CS = 0, PH10_J10_CS = 1, PH12_SDCARD_CS = 2, PG1_FLASH_CS = 3 }
Functions
int	bf52x_spi_csHigh (enum chipselect cs)
int	bf52x_spi_csLow (enum chipselect cs)
int	bf52x_spi_master_init (bf52x_spi_settings_st *spi_settings)
	Initializes the SPI interface as master.
int	bf52x_spi_master_send (void *data, unsigned short len, unsigned char datatype)
	Send data.
int	bf52x_spi_master_send16 (unsigned short *data, unsigned short len)
int	bf52x_spi_master_send8 (unsigned char *data, unsigned short len, unsigned char usedelay)
int	bf52x_spi_master_get (void *data, unsigned short len, unsigned char datatype)
	Receive data.
int	bf52x_spi_master_get16 (unsigned short *data, unsigned short len)
int	bf52x_spi_master_get8 (unsigned char *data, unsigned short len)
int	bf52x_spi_master_release ()

---

Typedef Documentation

typedef struct _bf52x_spi_settings_st bf52x_spi_settings_st

.h Contains declarations for BF52X SPI driver.

---

Enumeration Type Documentation

enum chipselect

Enumerator:

PH9_J13_CS
PH10_J10_CS
PH12_SDCARD_CS
PG1_FLASH_CS

---

Function Documentation

int bf52x_spi_csHigh

(

enum chipselect

cs

)

int bf52x_spi_csLow

(

enum chipselect

cs

)

int bf52x_spi_master_get	(	void *	data,
		unsigned short	len,
		unsigned char	datatype
	)

Receive data.

This function sends the command initially stored in data buffer and starts receiving the data.

Pre-conditions:

• The data and its length should be stored in data and len.

Post condtions:

• Transfers the command stored in data[0] and stores data from data[0] onwards.

Parameters:

Parameters:

data

- Initialy holds the command to be transmitted and space (of length bytes) for holding received data. len - length of data to be received. datatype - Indicates 1 byte or 2 byte data buffer.

Returns:

Zero if the data transaction was successful. Else negative value.

int bf52x_spi_master_get16	(	unsigned short *	data,
		unsigned short	len
	)

int bf52x_spi_master_get8	(	unsigned char *	data,
		unsigned short	len
	)

int bf52x_spi_master_init

(

bf52x_spi_settings_st *

spi_settings

)

Initializes the SPI interface as master.

This function initializes the SPI interface as master and configures the clock based on user input.

Pre-conditions:

• None.

Post condtions:

• Setups the interface for further SPI data transactions.

Parameters:

Parameters:

spi_settings

- see the above bf52x_spi_settings_st structure declaration for.

Returns:

0 if initialization was successful. Else non-zero value.

int bf52x_spi_master_release

(

)

int bf52x_spi_master_send	(	void *	data,
		unsigned short	len,
		unsigned char	datatype
	)

Send data.

This function sends the data.

Pre-conditions:

• The data and its length should be stored in data and len.

Post condtions:

• Transfers the data.

Parameters:

Parameters:

data

- Holds the data to be transmitted. len - length of data to be transmitted. datatype - Indicates 1 byte or 2 byte data buffer.

Returns:

Zero if the device data transfer was successful. Else negative value.

int bf52x_spi_master_send16	(	unsigned short *	data,
		unsigned short	len
	)

int bf52x_spi_master_send8	(	unsigned char *	data,
		unsigned short	len,
		unsigned char	usedelay
	)

---
