inc/ssm2602.h File Reference

#include "tll_config.h"
#include <isrDisp.h>

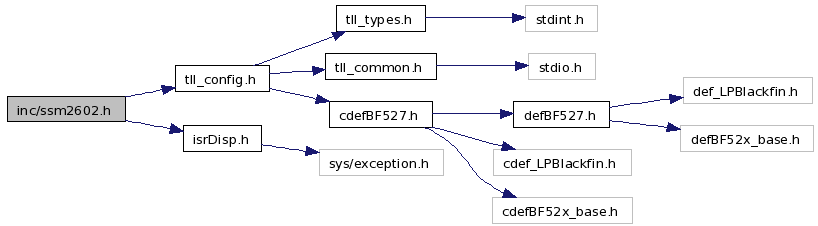

Include dependency graph for ssm2602.h:

This graph shows which files directly or indirectly include this file:


Defines
#define	SSM2602_RX (0x01)
	.h This file contains the register, function declarations for the ssm2602 audio codec.
#define	SSM2602_TX (0x01<<1)
#define	SSM2602_DEFAULT_INPUT_VOLUME 0x27
#define	SSM2602_I2C_SCLK 400000
#define	SSM2602_I2C_ADDR_A 0x1a
#define	SSM2602_I2C_ADDR_B 0x1b
#define	R0_LEFT_CHANNEL_ADC_INPUT_VOLUME (0x00)
#define	R1_RIGHT_CHANNEL_ADC_INPUT_VOLUME (0x01)
#define	R2_LEFT_CHANNEL_DAC_VOLUME (0x02)
#define	R3_RIGHT_CHANNEL_DAC_VOLUME (0x03)
#define	R4_ANALOG_AUDIO_PATH (0x04)
#define	R5_DIGITAL_AUDIO_PATH (0x05)
#define	R6_POWER_MANAGEMENT (0x06)
#define	R7_DIGITAL_AUDIO_IF (0x07)
#define	R8_SAMPLING_RATE (0x08)
#define	R9_ACTIVE (0x09)
#define	R15_SOFTWARE_RESET (0x0f)
#define	R16_ALC_CONTROL_1 (0x10)
#define	R17_ALC_CONTROL_2 (0x11)
#define	R18_NOISE_GATE (0x12)
#define	LRINBOTH 0x100
#define	LINMUTE 0x080
#define	LINVOL 0x03f
#define	LRHPBOTH 0x100
#define	LZCEN 0x080
#define	LHPVOL 0x07f
#define	MICBOOST2 0x100
#define	SIDETONE_ATT 0x0c0
#define	SIDETONE_EN 0x020
#define	DACSEL 0x010
#define	AUDIO_BYPASS 0x008
#define	INSEL 0x004
#define	MUTEMIC 0x002
#define	MICBOOST 0x001
#define	HPOR 0x010
#define	DACMU 0x008
#define	DEEMPH 0x006
#define	ADCHPF 0x001
#define	BCLKINV 0x080
#define	MS 0x040
#define	LRSWAP 0x020
#define	LRP 0x010
#define	WL 0x00c
#define	FORMAT 0x003
#define	CLKODIV2 0x080
#define	CLKDIV2 0x040
#define	SR 0x03c
#define	BOSR 0x002
#define	USB 0x001
#define	SOFT_RESET 0x1ff
#define	PCM_DATA_WORD_SIZE 32
#define	SAMPLING_FREQUENCY 8000
#define	CMD_WRITE 0
#define	CMD_READ 1
#define	AUDIO_ANALOG_LOOPBACK_FEATURE ENABLED
#define	AUDIO_PLAYBACK_FEATURE ENABLED
#define	AUDIO_DIGITAL_LOOPBACK_FEATURE ENABLED
#define	MAX_DMA_LEN 65536
#define	ssm2602_deinit(void) ssm2602_init()
	De-initialize the i2c interface and SSM2602 reset.
#define	MICIN 0
#define	LINEIN 1
#define	AUDIO_SOURCE LINEIN
Typedefs
typedef enum __Ssm2602Channel	eSsm2602Channel
	audio channels on SSM2602
typedef enum __Ssm2602SampleFreq	eSsm2602SampleFreq
	SSM2602 Sample Fequencies.
Enumerations
enum	__Ssm2602Channel { SSM2602_MAIN_IN = 0, SSM2602_MAIN_OUT }
	audio channels on SSM2602 More...
enum	__Ssm2602SampleFreq { SSM2602_SR_8000 = 0, SSM2602_SR_8020, SSM2602_SR_11025, SSM2602_SR_12000, SSM2602_SR_16000, SSM2602_SR_22050, SSM2602_SR_24000, SSM2602_SR_32000, SSM2602_SR_44100, SSM2602_SR_48000, SSM2602_SR_88200, SSM2602_SR_96000 }
	SSM2602 Sample Fequencies. More...
Functions
int	ssm2602_init (isrDisp_t *pIsrDisp, int volumeOut, int frequency, int flags)
	Initialize the i2c interface and SSM2602 reset.
int	ssm2602_i2c_init_playback (void)
	Initialize the SSM2602 in playback mode.
void	reconfig_dma (unsigned char *pSamples, unsigned int nBytes)
	Reconfigure dma channel 4 after done with transfering the 1st part of audio data.
void	ssm2602_sport0_init_playback (void)
	Initialize the audio codec in playback mode.
void	ssm2602_sport0_deinit_playback (void)
	De-initialize the playback mode of audio codec.
void	ssm2602_sport0_playback_dma (unsigned char *pSamples, unsigned int nBytes)
	Playback sound at pSamples location whith len bytes.
int	ssm2602_setVolume (eSsm2602Channel channel, unsigned char left, unsigned char right)
	SSM2602 set volume.
int	ssm2602_setSamplingFeq (eSsm2602Channel channel, eSsm2602SampleFreq freq)
	SSM2602 set sampling fequency.
int	ssm2602_i2c_init_bypass (void)
	Initialize the SSM2602 in analog loopback mode.
int	ssm2602_i2c_init_digital_loopback (void)
	Initialize the SSM2602 in digital loopback mode.
void	ssm2602_sport0_init_digital_loopback (void)
	Initialize the audio codec in digital loopback mode.
void	ssm2602_sport0_deinit_digital_loopback (void)
	De-initialize the digital loopback mode of audio codec.
int	audio_test (void)
	Tests the SSM2602 features.
int	ssm2602_txDma (unsigned char *address, int count)
	Set the tx DMA.

Define Documentation

#define ADCHPF 0x001

#define AUDIO_ANALOG_LOOPBACK_FEATURE ENABLED

#define AUDIO_BYPASS 0x008

#define AUDIO_DIGITAL_LOOPBACK_FEATURE ENABLED

#define AUDIO_PLAYBACK_FEATURE ENABLED

#define AUDIO_SOURCE LINEIN

#define BCLKINV 0x080

#define BOSR 0x002

#define CLKDIV2 0x040

#define CLKODIV2 0x080

#define CMD_READ 1

#define CMD_WRITE 0

#define DACMU 0x008

#define DACSEL 0x010

#define DEEMPH 0x006

#define FORMAT 0x003

#define HPOR 0x010

#define INSEL 0x004

#define LHPVOL 0x07f

#define LINEIN 1

#define LINMUTE 0x080

#define LINVOL 0x03f

#define LRHPBOTH 0x100

#define LRINBOTH 0x100

#define LRP 0x010

#define LRSWAP 0x020

#define LZCEN 0x080

#define MAX_DMA_LEN 65536

#define MICBOOST 0x001

#define MICBOOST2 0x100

#define MICIN 0

#define MS 0x040

#define MUTEMIC 0x002

#define PCM_DATA_WORD_SIZE 32

#define R0_LEFT_CHANNEL_ADC_INPUT_VOLUME (0x00)

#define R15_SOFTWARE_RESET (0x0f)

#define R16_ALC_CONTROL_1 (0x10)

#define R17_ALC_CONTROL_2 (0x11)

#define R18_NOISE_GATE (0x12)

#define R1_RIGHT_CHANNEL_ADC_INPUT_VOLUME (0x01)

#define R2_LEFT_CHANNEL_DAC_VOLUME (0x02)

#define R3_RIGHT_CHANNEL_DAC_VOLUME (0x03)

#define R4_ANALOG_AUDIO_PATH (0x04)

#define R5_DIGITAL_AUDIO_PATH (0x05)

#define R6_POWER_MANAGEMENT (0x06)

#define R7_DIGITAL_AUDIO_IF (0x07)

#define R8_SAMPLING_RATE (0x08)

#define R9_ACTIVE (0x09)

#define SAMPLING_FREQUENCY 8000

#define SIDETONE_ATT 0x0c0

#define SIDETONE_EN 0x020

#define SOFT_RESET 0x1ff

#define SR 0x03c

#define SSM2602_DEFAULT_INPUT_VOLUME 0x27

int ssm2602_deinit ( void ) ssm2602_init()

De-initialize the i2c interface and SSM2602 reset.

This function:- 1. Soft resets the SSM2602 audio codec. 2. De-initalizes the i2c interface.

Pre-conditions:

None.

Post condtions:

SSM2602 is reset.

Parameters:

Parameters:

None.

Returns:: Zero on success. Negative value on failure.

#define SSM2602_I2C_ADDR_A 0x1a

#define SSM2602_I2C_ADDR_B 0x1b

#define SSM2602_I2C_SCLK 400000

#define SSM2602_RX (0x01)

.h This file contains the register, function declarations for the ssm2602 audio codec.

#define SSM2602_TX (0x01<<1)

#define USB 0x001

#define WL 0x00c

Typedef Documentation

typedef enum __Ssm2602Channel eSsm2602Channel

audio channels on SSM2602

typedef enum __Ssm2602SampleFreq eSsm2602SampleFreq

SSM2602 Sample Fequencies.

Enumeration Type Documentation

enum __Ssm2602Channel

audio channels on SSM2602

Enumerator:

SSM2602_MAIN_IN	main output channel
SSM2602_MAIN_OUT

enum __Ssm2602SampleFreq

SSM2602 Sample Fequencies.

Enumerator:

SSM2602_SR_8000
SSM2602_SR_8020
SSM2602_SR_11025
SSM2602_SR_12000
SSM2602_SR_16000
SSM2602_SR_22050
SSM2602_SR_24000
SSM2602_SR_32000
SSM2602_SR_44100
SSM2602_SR_48000
SSM2602_SR_88200
SSM2602_SR_96000

Function Documentation

int audio_test ( void )

Tests the SSM2602 features.

This function provides a user interface to test the codec features.

Pre-conditions:

None.

Post condtions:

None.

Parameters:

Parameters:

None.

Returns:: Zero if the test passed. Negative value if the test failed.

void reconfig_dma	(	unsigned char *	pSamples,
		unsigned int	nBytes
	)

Reconfigure dma channel 4 after done with transfering the 1st part of audio data.

This function will do the following:- 1. Disable dma4. 2. Reconfigure dma4 according to the even or odd number of interrupts. 3. Enable dma4.

Pre-conditions:

None.

Post condtions:

None.

Parameters:

Parameters:

pSample

- pointer to the start address of the audio data nBytes - audio data number in bytes

Returns:: void

int ssm2602_i2c_init_bypass ( void )

Initialize the SSM2602 in analog loopback mode.

This function configures the Audio codec for only loopback mode: - a. Unmute left & right channel ADC volume. Set to some audible volumes. ???Check if this is required b. Analog Audio Path: Enable BYPASS, select input as Line In & rest default. c. Power up & Soft reset.

Pre-conditions:

None.

Post condtions:

SSM2602 is in analog loopback mode.

Parameters:

Parameters:

None.

Returns:: Zero on success. Negative value on failure.

int ssm2602_i2c_init_digital_loopback ( void )

Initialize the SSM2602 in digital loopback mode.

This function configures the Audio codec for only digital loopback mode (Record + Playback) : - a. Left & right channel DAC volume. Set to some audible volumes. b. Digital audio path: Unmute, & other default values. f. Digital Audio I/F: Configure it for 32 bit data length & I2S mode. c. Sampling rate: 8KHz, normal mode (not usb) & other default values. d. Audio Input Path: Disable the BYPASS (since default enabled). ///???This might reduce the noise. e. Activate the digital core in ACTIVE register.

Pre-conditions:

None.

Post condtions:

SSM2602 is in digital loopback mode. The incoming analog data at the line in is capture by the SSM2602 digitized and given to the BF527 processor over the SPORT (RX) interface. The BF527 captures the data and sends back this data over the SPORT (TX) interface to the SSM2602 codec.

Parameters:

Parameters:

None.

Returns:: Zero on success. Negative value on failure.

int ssm2602_i2c_init_playback ( void )

Initialize the SSM2602 in playback mode.

This function configures the Audio codec for only playback: - 1. Left & right channel DAC volume. Set to some audible volumes. 2. Digital audio path: Unmute, & other default values. 3. Digital Audio I/F: Configure it for 32 bit data length & I2S mode. 4. Sampling rate: 8KHz, normal mode (not usb) & other default values. 5. Audio Input Path: Disable the BYPASS (since default enabled). ///???This might reduce the noise. 6. Activate the digital core in ACTIVE register.

Pre-conditions:

None.

Post condtions:

SSM2602 is in playback mode.

Parameters:

Parameters:

None.

Returns:: Zero on success. Negative value on failure.

int ssm2602_init	(	isrDisp_t *	pIsrDisp,
		int	volumeOut,
		int	frequency,
		int	flags
	)

Initialize the i2c interface and SSM2602 reset.

This function:- 1. Initalizes the i2c interface as the master. 2. Soft resets the SSM2602 audio codec.

Pre-conditions:

None.

Post condtions:

SSM2602 is reset and ready.

Parameters:

Parameters:

None.

Returns:: Zero on success. Negative value on failure.

int ssm2602_setSamplingFeq	(	eSsm2602Channel	channel,
		eSsm2602SampleFreq	freq
	)

SSM2602 set sampling fequency.

Pre-conditions:

CODEC has to be initialized by by ssm2602_i2c_init.

Post condtions:

Parameters:

Parameters:

srFreq

sampling frequency

Returns:: void

int ssm2602_setVolume	(	eSsm2602Channel	channel,
		unsigned char	left,
		unsigned char	right
	)

SSM2602 set volume.

Pre-conditions:

CODEC has to be initialized by by ssm2602_i2c_init.

Post condtions:

Parameters:

Parameters:

	channel	input or output channel
	left	left volume (0 softest 127 loudest +6dB)
	right	right volume (0 softest 127 loudest +6dB)

Note for output volume <64 channel is muted

Returns:: void

void ssm2602_sport0_deinit_digital_loopback ( void )

De-initialize the digital loopback mode of audio codec.

This function disables the dma and the sport.

Pre-conditions:

None.

Post condtions:

Stops the data transfer over the sport in turn stoping the data to and from the codec.

Parameters:

Parameters:

None.

Returns:: void

void ssm2602_sport0_deinit_playback ( void )

De-initialize the playback mode of audio codec.

This function disables the dma and the sport.

Pre-conditions:

None.

Post condtions:

Stops the data transfer over the sport in turn stoping the data to the codec.

Parameters:

Parameters:

None.

Returns:: void

void ssm2602_sport0_init_digital_loopback ( void )

Initialize the audio codec in digital loopback mode.

This function:- 1. Configures the sport interface. 2. Uses the peripheral DMA3 to transfer data from peripheral to the memory. 3. Uses the peripheral DMA4 to transfer data from memory (stored by DMA3) to the peripheral.

Pre-conditions:

None.

Post condtions:

Initiates the digital loopback.

Parameters:

Parameters:

None.

Returns:: void

void ssm2602_sport0_init_playback ( void )

Initialize the audio codec in playback mode.

This function:- 1. Configures the sport interface. 2. Configures the SSM2602 in playback mode. 3. Uses the peripheral DMA to transfer data from memory to the peripheral.

Pre-conditions:

None.

Post condtions:

Initiates the playback of the stored sine tone or the pre- recoreded data.

Parameters:

Parameters:

None.

Returns:: void

void ssm2602_sport0_playback_dma	(	unsigned char *	pSamples,
		unsigned int	nBytes
	)

Playback sound at pSamples location whith len bytes.

This function will do the following:- 1. Configures the sport interface. 2. Configures the SSM2602 in playback mode. 3. Configure DMA to write audio data to the sport0 FIFO

Note: this interface does not define sample width or frequency

Pre-conditions:

None.

Post condtions:

Initiates the playback of the stored sine tone or the pre- recoreded data.

Parameters:

Parameters:

	pSamples	pointer to samples for playing
	len	number of bytes to play

Returns:: void

int ssm2602_txDma	(	unsigned char *	address,
		int	count
	)

Set the tx DMA.

This function provides a user interface to set the TX dma

Pre-conditions:

None.

Post condtions:

None.

Parameters:

Parameters:

Memory

location, count

Returns:: Zero if passed. Negative value if failed.

Generated on 3 Mar 2014 for PAL bare-c Library by

1.4.7

inc/ssm2602.h File Reference

Defines

Typedefs

Enumerations

Functions

Define Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation
