inc/picotk.h File Reference

#include <stdbool.h>
#include <wchar.h>
#include "framebuffer.h"

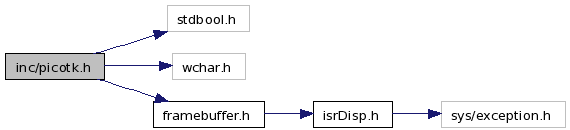

Include dependency graph for picotk.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	picotk_stFont
	Font structure. More...
struct	picotk_stColor
	Color structure. More...
struct	picotk_stPixmap
	Pixmap structure which stores pixmaps in RGB565 format. More...
struct	picotk_Terminal_st
	Terminal structure. More...
Typedefs
typedef enum picotk_enBuffer	picotk_Buffer
	Destination buffer enum.
typedef picotk_stFont	picotk_Font
	Font structure.
typedef picotk_stColor	picotk_Color
	Color structure.
typedef enum picotk_enPixmapType	picotk_PixmapType
typedef picotk_stPixmap	picotk_Pixmap
	Pixmap structure which stores pixmaps in RGB565 format.
typedef picotk_Terminal_st	picotk_Terminal
	Terminal structure.
Enumerations
enum	picotk_enBuffer { LCD_FB, LCD_BB, LCD_SB, PTK_TERM }
	Destination buffer enum. More...
enum	picotk_enPixmapType { PICOTK_RGB565, PICOTK_RGB5A1 }
Functions
int	picotk_Init (isrDisp_t *isrDisp)
	Initializes picoTK and the display with the given ISR dispatcher.
void	picotk_EnableDebug (int debug)
	Enable debugging messages (i.e.
void	picotk_Show ()
	Show the contents of the latest framebuffer onto the display.
void	picotk_ShowNB ()
	Begins to show the display, but does not block.
void	picotk_ReadyToDraw ()
	If picotk_ShowNB() was previously calls, waits until the display has finished refreshing.
void	picotk_DestSet (picotk_Buffer destination)
	Sets the destination buffer to destination.
void	picotk_DrawPoint (picotk_Color *color, int x, int y)
	Draws a point at the given coordinates.
void	picotk_DrawLine (picotk_Color *color, int x1, int y1, int x2, int y2)
	Draws a one pixel wide line between (x1, y1) and (x2,y2) using the provided color.
int	picotk_DrawText (picotk_Font *font, picotk_Color *color, int x, int y, char *txt)
	Draws text starting at x, y (upper left corner of rectangle around text) with the provided font and color.
int	picotk_DrawTextCentered (picotk_Font *font, picotk_Color *color, int x, int y, char *text)
	Similar to picotk_DrawText() but centered around x position, i.e.
int	picotk_TextWidth (picotk_Font *font, char *txt)
	Calculates the text's width in pixels, given a font and the text.
int	picotk_TextHeight (picotk_Font *font, char *txt)
	Calculates the text's height in pixels, given a font and the text.
void	picotk_PixmapInit (picotk_Pixmap *pixmap, int width, int height, picotk_PixmapType type, const unsigned short *data)
	Given a pointer to a newly-allocated picotk_Pixmap, initializes its contents with the provided pixmap data.
void	picotk_PixmapDraw (picotk_Pixmap *pixmap, int x, int y)
	Draws a pixmap at the given coordinates (upper left corner of rectangle around pixmap).
void	picotk_DrawRect (picotk_Color *color, int x, int y, int w, int h)
	Draws a rectangle with an lower left corner at (x,y) and upper right corner at (x+w-1,y+h-1).
void	picotk_FillRect (picotk_Color *color, int x, int y, int w, int h)
	Draws a filled rectangle with the top left corner at (x,y) and the lower right corner at (x+w-1,y+h-1).
void	picotk_DrawCircle (picotk_Color *color, int x, int y, int r)
	Draws a circle (outline, not filled).
void	picotk_FillCircle (picotk_Color *color, int x, int y, int r)
	Draws a filled circle.
void	picotk_Scroll (int x, int y, int w, int h, int delta)
	Vertically scrolls an area with an upper left corner at (x,y) and a lower right corner at (x+w-1,y+h-1).
void	picotk_TerminalInit (picotk_Terminal *term, int wc, int hc, picotk_Font *font, picotk_Color *fgColor, picotk_Color *bgColor)
void	picotk_TerminalPutc (picotk_Terminal *term, int ch)
	Types a single character into given terminal.
void	picotk_TerminalPrintf (picotk_Terminal *term, char *fmt,...)
	Types characters into the terminal according to the format string and the following parameters.
void	picotk_TerminalDraw (picotk_Terminal *term, int x, int y)
int	picotk_slackGet (void)
	Returns the nanosecs until the pending image switch is executed, or 0 if no switch is pending.
void	picotk_plotSlackBar (picotk_Color *color, int x, int y, unsigned char horizontal, unsigned short maxLen)
	Plots slack on a 1 pixel wide bar graph.
int	picotk_statsGet (unsigned int *nrUpdates, unsigned int *nrSame)
	Gathers display statistics.
Variables
picotk_Font	picotk_font_10x20
picotk_Font	picotk_font_5x7
picotk_Font	picotk_font_6x12
picotk_Font	picotk_font_8x13
picotk_Font	picotk_font_helv_b34
picotk_Font	picotk_font_helv_m20
picotk_Font	picotk_font_helv_m24
picotk_Font	picotk_font_helv_m25
picotk_Font	picotk_font_helv_m34
picotk_Font	picotk_font_school_m34

---

Typedef Documentation

typedef enum picotk_enBuffer picotk_Buffer

Destination buffer enum.

typedef struct picotk_stColor picotk_Color

Color structure.

typedef struct picotk_stFont picotk_Font

Font structure.

typedef struct picotk_stPixmap picotk_Pixmap

Pixmap structure which stores pixmaps in RGB565 format.

typedef enum picotk_enPixmapType picotk_PixmapType

typedef struct picotk_Terminal_st picotk_Terminal

Terminal structure.

---

Enumeration Type Documentation

enum picotk_enBuffer

Destination buffer enum.

Enumerator:

LCD_FB
LCD_BB	foreground buffer
LCD_SB	background buffer
PTK_TERM	draw to a picoTK terminal

enum picotk_enPixmapType

Enumerator:

PICOTK_RGB565
PICOTK_RGB5A1

---

Function Documentation

void picotk_DestSet

(

picotk_Buffer

destination

)

Sets the destination buffer to destination.

Parameters:

destination

The destination buffer

void picotk_DrawCircle	(	picotk_Color *	color,
		int	x,
		int	y,
		int	r
	)

Draws a circle (outline, not filled).

Parameters:

	color	The color of the circle
	x	The x-coordinate of the center of the circle
	y	The y-coordinate of the center of the circle
	r	The radius of the circle

void picotk_DrawLine	(	picotk_Color *	color,
		int	x1,
		int	y1,
		int	x2,
		int	y2
	)

Draws a one pixel wide line between (x1, y1) and (x2,y2) using the provided color.

Parameters:

	color
	x1
	y1
	x2
	y2

void picotk_DrawPoint	(	picotk_Color *	color,
		int	x,
		int	y
	)

Draws a point at the given coordinates.

Parameters:

	color	The color of the point
	x	The x position of the point
	y	The y position of the point

void picotk_DrawRect	(	picotk_Color *	color,
		int	x,
		int	y,
		int	w,
		int	h
	)

Draws a rectangle with an lower left corner at (x,y) and upper right corner at (x+w-1,y+h-1).

Parameters:

	color	pointer to picotk_Color struct
	x,y	top left coordinates of rectangle
	w,h	width and height of rectangle

int picotk_DrawText	(	picotk_Font *	font,
		picotk_Color *	color,
		int	x,
		int	y,
		char *	txt
	)

Draws text starting at x, y (upper left corner of rectangle around text) with the provided font and color.

Parameters:

	font
	color
	x
	y
	txt

int picotk_DrawTextCentered	(	picotk_Font *	font,
		picotk_Color *	color,
		int	x,
		int	y,
		char *	text
	)

Similar to picotk_DrawText() but centered around x position, i.e.

text extends to left and right of x to the same amount.

Parameters:

	font
	color
	x
	y
	text

void picotk_EnableDebug

(

int

debug

)

Enable debugging messages (i.e.

out of bounds checking). Disable for performance

Parameters:

debug

1 to enable, 0 to disable

void picotk_FillCircle	(	picotk_Color *	color,
		int	x,
		int	y,
		int	r
	)

Draws a filled circle.

Parameters:

	color	The color of the circle
	x	The x-coordinate of the center of the circle
	y	The y-coordinate of the center of the circle
	r	The radius of the circle

void picotk_FillRect	(	picotk_Color *	color,
		int	x,
		int	y,
		int	w,
		int	h
	)

Draws a filled rectangle with the top left corner at (x,y) and the lower right corner at (x+w-1,y+h-1).

int picotk_Init

(

isrDisp_t *

isrDisp

)

Initializes picoTK and the display with the given ISR dispatcher.

Clears (color=0) the display canvas. picoTK uses a canvas with an origin in the upper left corner. One LSB in the coordinate system equals a single pixel.

void picotk_PixmapDraw	(	picotk_Pixmap *	pixmap,
		int	x,
		int	y
	)

Draws a pixmap at the given coordinates (upper left corner of rectangle around pixmap).

Parameters:

	pixmap
	x
	y

void picotk_PixmapInit	(	picotk_Pixmap *	pixmap,
		int	width,
		int	height,
		picotk_PixmapType	type,
		const unsigned short *	data
	)

Given a pointer to a newly-allocated picotk_Pixmap, initializes its contents with the provided pixmap data.

This function only needs to be called once; you will still have to call picotk_DrawPixmap() to actually draw the pixmap onto a framebuffer.

Parameters:

	pixmap	The pixmap struct to initialize
	height
	width
	type
	data	A pointer to the contents of the pixmap; this depends on the pixma's type

void picotk_plotSlackBar	(	picotk_Color *	color,
		int	x,
		int	y,
		unsigned char	horizontal,
		unsigned short	maxLen
	)

Plots slack on a 1 pixel wide bar graph.

Assumption: frame rate 30Hz

void picotk_ReadyToDraw

(

)

If picotk_ShowNB() was previously calls, waits until the display has finished refreshing.

If you do not call this function, the display may not be fully updated by the time you call picotk_ShowNB() again.

void picotk_Scroll	(	int	x,
		int	y,
		int	w,
		int	h,
		int	delta
	)

Vertically scrolls an area with an upper left corner at (x,y) and a lower right corner at (x+w-1,y+h-1).

The area is scrolled by delta pixels. If delta is positive the area is scrolled up; otherwise it is scrolled down.

Parameters:

	x
	y
	w
	h
	delta	The offset to scroll by (scrolled up if positive)

void picotk_Show

(

)

Show the contents of the latest framebuffer onto the display.

Note that this function blocks until the frame has been committed and the next one prepared. If you intend to do some processing in between frames, call picotk_ShowNB(), perform your calculations, and then call picotk_ReadyToDraw().

void picotk_ShowNB

(

)

Begins to show the display, but does not block.

Note that this function does not block; you can perform other calculations, but still need to draw picotk_ReadyToDraw() to ensure the frame syncing is done correctly

int picotk_slackGet

(

void

)

Returns the nanosecs until the pending image switch is executed, or 0 if no switch is pending.

Returns nanoSec until pending image switch is executed, 0 if no switch is pending.

Pre-conditions:

• display_Init is successful

Post condtions:

Parameters:

Parameters:

state

address of LCD state variable

Returns:

nanoseconds until pending switch occurs

int picotk_statsGet	(	unsigned int *	nrUpdates,
		unsigned int *	nrSame
	)

Gathers display statistics.

gathers display statistics nrUpdates number of images updated nrSame number of identical images displayed

Pre-conditions:

• display_Init is successful

Post condtions:

Parameters:

Parameters:

state

address of LCD state variable

Returns:

int status (0 for success, -1 for failure)

void picotk_TerminalDraw	(	picotk_Terminal *	term,
		int	x,
		int	y
	)

void picotk_TerminalInit	(	picotk_Terminal *	term,
		int	wc,
		int	hc,
		picotk_Font *	font,
		picotk_Color *	fgColor,
		picotk_Color *	bgColor
	)

void picotk_TerminalPrintf	(	picotk_Terminal *	term,
		char *	fmt,
			...
	)

Types characters into the terminal according to the format string and the following parameters.

It is compatible to how POSIX printf() handles its format string. Special character are interpreted by the terminal just as with picotk_TerminalPutc().

void picotk_TerminalPutc	(	picotk_Terminal *	term,
		int	ch
	)

Types a single character into given terminal.

The terminal handles some special ASCII characters as such, including \r (ADE 13) \n (ADE 10).

int picotk_TextHeight	(	picotk_Font *	font,
		char *	txt
	)

Calculates the text's height in pixels, given a font and the text.

Parameters:

	font
	txt

int picotk_TextWidth	(	picotk_Font *	font,
		char *	txt
	)

Calculates the text's width in pixels, given a font and the text.

Parameters:

	font
	txt

---

Variable Documentation

picotk_Font picotk_font_10x20

picotk_Font picotk_font_5x7

picotk_Font picotk_font_6x12

picotk_Font picotk_font_8x13

picotk_Font picotk_font_helv_b34

picotk_Font picotk_font_helv_m20

picotk_Font picotk_font_helv_m24

picotk_Font picotk_font_helv_m25

picotk_Font picotk_font_helv_m34

picotk_Font picotk_font_school_m34

---
