inc/framebuffer.h File Reference

This file contains enums, and function prototypes for Frame Buffer Nuggets. More...

#include "isrDisp.h"

Include dependency graph for framebuffer.h:

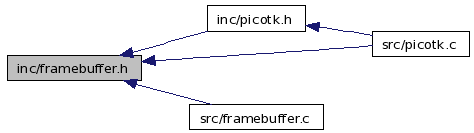

This graph shows which files directly or indirectly include this file:


Data Structures
struct	fb_t
	fb_t structure More...
Defines
#define	RGB888toRGB565(r, g, b)
#define	RGB5A1toRGB565(color)
#define	RGB5A1isTransparent(color) (color & 0x1)
#define	RGB565toBGR565(color)
#define	QVGA_WIDTH 320
#define	QVGA_HEIGHT 240
#define	FB_NUM_BUFFERS 3
#define	QVGA_TESTPATTERN_HEIGHT 30
Enumerations
enum	pixel_format { RGB565 = 0, YUYV422 = 1 }
	Enumeration of the supported pixel formats. More...
enum	image_type { TEST_PATTERN = 0, PAINTED_IMAGE = 1, CUSTOM = 2 }
	Enumeration of the supported image type. More...
enum	fb_device_type { LQ035Q1DH02 = 0 }
	Enumeration of the supported Display Scrrens. More...
Functions
int	fb_Init (fb_t state, int devicenumber, enum fb_device_type devicetype, enum pixel_format pixFormat, isrDisp_t pIsrDisp)
	Initialize the Frame Buffer System.
int	fb_imageShow (fb_t *state)
	Image Display.
int	fb_imageShowComplete (fb_t *state)
	Image Display Complete.
int	fb_slackGet (fb_t *state)
	Slack Get.
int	fb_statsGet (fb_t state, unsigned int nrUpdates, unsigned int *nrSame)
	statistic get
int	fb_pixelPut (fb_t *state, unsigned char red, unsigned char green, unsigned char blue, unsigned short x_pos, unsigned short y_pos)
	Pixel Plot.
unsigned int	fb_colorTargetGet (fb_t *state, unsigned char red, unsigned char green, unsigned char blue)
	return color in target format of display
void	fb_pixelPutRaw (fb_t *state, unsigned int color, unsigned short x_pos, unsigned short y_pos)
	Pixel Plot.
int	fb_qvgaRgb565TestPatternCreate (fb_t *state)
	function to fill color bar pattern
int	fb_passiveBufferGet (fb_t state, unsigned short *passiveBuffer)
	find passive buffer
int	fb_Release (fb_t *state)
	Release the FB System.
int	bb_Init (fb_t *state)
	Initialize the Background Buffer System.
int	bb_pixelPut (unsigned char red, unsigned char green, unsigned char blue, unsigned short x_pos, unsigned short y_pos)
	Background Pixel Plot.
void	bb_pixelPutRaw (unsigned int color, unsigned short x_pos, unsigned short y_pos)
	Background Pixel Plot.
int	bb_imageShow (unsigned short *displayBuffer)
	Background Image Display.
int	bb_imageCommit ()
	Background Image Commit.
int	bb_isReady ()
	Background MDMA Ready.
int	bb_clearPassive ()
	Passive Buffer Clear.
void	bb_imageWaitForReady ()
	Block until we are sure that the MDMA has finished copying the background for the provided foreground buffer.

Detailed Description

This file contains enums, and function prototypes for Frame Buffer Nuggets.

Version:: 1.5

Date:: 20120331

Author:: C. Lavania

Organization: The Learning Labs

Tested: Compiler bfin-elf-gcc; Output format Bare Metal Elf; Target TLL6527M V1.2

Revised: 20120331, Author: C. Lavania, Notes: Cleaned Up

Revised: 20120328, Author: C. Lavania, Notes: Added macros for QVGA width and QVGA height, and test pattern height

Revised: 20120327, Author: C. Lavania, Notes: Modified state structure and exposed function interface, introduced new functions for test pattern generation and providing user with the passive buffer.

Revised: 20120322, Author: C. Lavania, Notes: Cleaned Up

Revised: 20120321, Author: C. Lavania, Notes: Modified state structure and added the screen buffer to it, modified fb_Init() and fb_imageShow() prototypes.

Created: 20120317, Author: C. Lavania, Notes: Created the Initial Version

References:

1. ADSP-BF52x Blackfin Processor Hardware Reference, Revision 1.0, March 2010

Define Documentation

#define FB_NUM_BUFFERS 3

#define QVGA_HEIGHT 240

#define QVGA_TESTPATTERN_HEIGHT 30

#define QVGA_WIDTH 320

#define RGB565toBGR565 ( color )

Value:

((color << 11) | (color >> 11) | \
                (color & (0x07E0)))

#define RGB5A1isTransparent ( color ) (color & 0x1)

#define RGB5A1toRGB565 ( color )

Value:

(color & 0xFFC0)| \
        ((color & 0x3E) >> 1)

#define RGB888toRGB565	(	r,
		g,
		b	)

Value:

((r >> 3) << 11)| \
        ((g >> 2) << 5)| ((b >> 3) << 0)

Enumeration Type Documentation

enum fb_device_type

Enumeration of the supported Display Scrrens.

Enumerator:

LQ035Q1DH02

enum image_type

Enumeration of the supported image type.

DEFAULT = Displays the Color Bar Pattern STATE_VARIABLE = Displays Contents of state->buffer CUSTOM = Displays image passed as parameter

Enumerator:

TEST_PATTERN
PAINTED_IMAGE
CUSTOM

enum pixel_format

Enumeration of the supported pixel formats.

Enumerator:

RGB565
YUYV422

Function Documentation

int bb_clearPassive ( )

Passive Buffer Clear.

This function clears the current passive buffer

Note: Call this function to reset passive buffer

Pre-conditions:

bb_Init is successful

Post conditions

clears passive background buffer

int bb_imageCommit ( )

Background Image Commit.

This function switches between active and passive background buffers

Note: This function needs to be called to commit changes to the background buffer

Pre-conditions:

bb_Init is successful

Post conditions

active and passive background buffers switched

Returns:: int status (0 for success, -1 for failure)

int bb_imageShow ( unsigned short * displayBuffer )

Background Image Display.

This function loads image stored in the active background buffer onto the passive frame buffer.

Note : This function needs to be called each time the active frame buffer is changed

Pre-conditions:

bb_Init is successful

Post conditions:

copies image into passive frame buffer

Parameters:

Parameters:

displayBuffer

pointer to receiving buffer

Returns:: int status (0 for success, -1 for failure)

void bb_imageWaitForReady ( )

Block until we are sure that the MDMA has finished copying the background for the provided foreground buffer.

int bb_Init ( fb_t * state )

Initialize the Background Buffer System.

This function initializes the background overlay buffers

Pre-conditions:

None.

Post conditions:

Setups the BB System.

Parameters:

Returns:: int status (0 for success, -1 for failure)

int bb_isReady ( )

Background MDMA Ready.

This function checks if the MDMA used in the Background buffer is ready

Note: Call this function to check if a background buffer to frame buffer copy is taking place

Pre-conditions:

bb_Init is successful

Post conditions

returns status of Background buffer MDMA

Returns:: int ready (0 for not ready, 1 for ready)

int bb_pixelPut	(	unsigned char	red,
		unsigned char	green,
		unsigned char	blue,
		unsigned short	x_pos,
		unsigned short	y_pos
	)

Background Pixel Plot.

This function plots a pixel at the given location with given color

Pre-conditions:

fb_Init is successful

Post conditions:

Pixel Plotted

Parameters:

Parameters:

	red	red value of the color
	green	green value of the color
	blue	blue value of the color
	x_pos	X Coordinate (in pixels)
	y_pos	Y Coordinate (in pixels)

Returns:: int status (0 for success, -1 for failure)

void bb_pixelPutRaw	(	unsigned int	color,
		unsigned short	x_pos,
		unsigned short	y_pos
	)			`[inline]`

Background Pixel Plot.

This function plots a pixel at the given location with given color

no boundary check,
assumption: LQ035Q1DH02

Pre-conditions:

fb_Init is successful

Post conditions:

Pixel Plotted

Parameters:

Parameters:

	state	address of FB state variable
	color	in target format
	x_pos	X Coordinate (in pixels)
	y_pos	Y Coordinate (in pixels)

Returns:: int status (0 for success, -1 for failure)

unsigned int fb_colorTargetGet	(	fb_t *	state,
		unsigned char	red,
		unsigned char	green,
		unsigned char	blue
	)

return color in target format of display

int fb_imageShow ( fb_t * state )

Image Display.

This function displays an image stored in the passive buffer on the screen.

Note : This function needs to be called each time a new image needs to be displayed on the screen

Pre-conditions:

fb_Init is successful

Post conditions:

Displays image on screen

Parameters:

Parameters:

state

address of FB state variable

Returns:: int status (0 for success, -1 for failure)

int fb_imageShowComplete ( fb_t * state )

Image Display Complete.

Blocks caller until last image show is completed. Returns immediately if no switch is pending.

Pre-conditions:

fb_Init is successful

Post conditions:

Parameters:

Parameters:

state

address of FB state variable

Returns:: int status (0 for success, -1 for failure)

int fb_Init	(	fb_t *	state,
		int	devicenumber,
		enum fb_device_type	devicetype,
		enum pixel_format	pixFormat,
		isrDisp_t *	pIsrDisp
	)

Initialize the Frame Buffer System.

This function initializes LCD System including related Timer, PPI, DMA Systems.

Pre-conditions:

None.

Post conditions:

Setups the FB System.

Parameters:

Parameters:

	state	address of FB state variable
	devicenumber	to store the instance of the device being used (0 - 4)
	devicetype	the actual display device being accessed
	pixFormat	pixel is RGB565 or YUYV422

Returns:: int status (0 for success, -1 for failure)

int fb_passiveBufferGet	(	fb_t *	state,
		unsigned short **	passiveBuffer
	)

find passive buffer

This function stores the address of the passive buffer in the passed buffer parameter

Pre-conditions:

fb_Init is successful.

Post conditions:

passive buffer made available to the higher layer

Parameters:

	state	address of FB state variable
	passiveBuffer	stores the address of the pointer which will store the passiveBuffer starting point

Returns:: void

int fb_pixelPut	(	fb_t *	state,
		unsigned char	red,
		unsigned char	green,
		unsigned char	blue,
		unsigned short	x_pos,
		unsigned short	y_pos
	)

Pixel Plot.

This function plots a pixel at the given location with given color

Pre-conditions:

fb_Init is successful

Post conditions:

Pixel Plotted

Parameters:

Parameters:

	state	address of FB state variable
	red	red value of the color
	green	green value of the color
	blue	blue value of the color
	x_pos	X Coordinate (in pixels)
	y_pos	Y Coordinate (in pixels)

Returns:: int status (0 for success, -1 for failure)

void fb_pixelPutRaw	(	fb_t *	state,
		unsigned int	color,
		unsigned short	x_pos,
		unsigned short	y_pos
	)			`[inline]`

Pixel Plot.

This function plots a pixel at the given location with given color

no boundary check,
assumption: LQ035Q1DH02

Pre-conditions:

fb_Init is successful

Post conditions:

Pixel Plotted

Parameters:

Parameters:

	state	address of FB state variable
	color	in target format
	x_pos	X Coordinate (in pixels)
	y_pos	Y Coordinate (in pixels)

Returns:: int status (0 for success, -1 for failure)

int fb_qvgaRgb565TestPatternCreate ( fb_t * state )

function to fill color bar pattern

This function creates the color bar pattern in the passive DMA Buffer

Pre-conditions:

fb_Init is successful.

Post conditions:

pattern created

Parameters:

Parameters:

state

address of FB state variable

Returns:: void

int fb_Release ( fb_t * state )

Release the FB System.

This function releases FB System including related Timer, PPI, DMA Systems.

Pre-conditions:

fb_Init is successful

Post conditions:

FB System Released.

Parameters:

Parameters:

state

address of FB state variable

Returns:: int status (0 for success, -1 for failure)

int fb_slackGet ( fb_t * state )

Slack Get.

Returns nanoSec until pending image switch is executed, 0 if no switch is pending.

Pre-conditions:

display_Init is successful

Post conditions:

Parameters:

Parameters:

state

address of LCD state variable

Returns:: nanoseconds until pending switch occurs

int fb_statsGet	(	fb_t *	state,
		unsigned int *	nrUpdates,
		unsigned int *	nrSame
	)

statistic get

gathers display statistics nrUpdates number of images updated nrSame number of identical images displayed

Pre-conditions:

display_Init is successful

Post condtions:

Parameters:

Parameters:

state

address of LCD state variable

Returns:: int status (0 for success, -1 for failure)

Generated on 3 Mar 2014 for PAL bare-c Library by

1.4.7

inc/framebuffer.h File Reference

Data Structures

Defines

Enumerations

Functions

Detailed Description

Define Documentation

Enumeration Type Documentation

Function Documentation
