src/lq035q1dh02.h File Reference

The file contains function prototypes for the nuggets and macros related to LQ035Q1DH02DHO2 LCD. More...

#include "isrDisp.h"

Include dependency graph for lq035q1dh02.h:

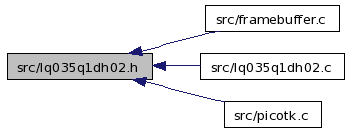

This graph shows which files directly or indirectly include this file:


Data Structures
struct	display_frameBufferDescr_s
struct	display_t
	display_t structure More...
Defines
#define	TOTAL_FRAMES 200
#define	whitecolor 0xffff
#define	blackcolor 0x0000
#define	bluecolor 0x0010
#define	redcolor 0xf800
#define	greencolor 0x07e0
#define	cyancolor 0x7ff
#define	yellowcolor 0xffe0
#define	SPI_CLOCK_SPEED 5000000
#define	magentacolor 0xf81f
#define	BACKLIGHT_ON 1
#define	BACKLIGHT_OFF 0
#define	LCD_ACTIVE_PIXELS_PER_LINE 320
#define	LCD_ACTIVE_LINES_PER_FRAME 240
#define	TIMOD01 0x01
#define	V_LINES 244
#define	BLANKING_LINES 4
#define	PRE_BLANKING_LINES 2
#define	POST_BLANKING_LINES 2
#define	HSYNC_PERIOD 336
#define	VSYNC_PERIOD HSYNC_PERIOD*V_LINES
#define	HSYNC_WIDTH 2
#define	VSYNC_WIDTH 2
#define	HSYNC_DELAY 7
#define	ERROR -1
#define	SPI_TRANSMISSION_ERR -2
#define	SPI_MODEFAULT_ERR -3
#define	SUCCESS 0
#define	TIMEOUT -4
#define	TMODE_PWMOUT 0x0001
#define	PORT_CFG_01 0x10
#define	XFR_TYPE_11 0x0c
#define	PORT_DIR_TRNS 0x02
#define	pSPI_BAUDRATE 0xFFC00514
#define	CMD 0x01
#define	DATA 0x02
#define	DISPLAY_WIDTH 320
#define	DISPLAY_HEIGHT 240
#define	LQ035Q1DH02_BGR 0x08
#define	LQ035Q1DH02_REV 0x20
#define	LQ035Q1DH02_NUMBERS 1
Typedefs
typedef display_frameBufferDescr_s	display_frameBufferDescr_t
Enumerations
enum	dispaly_pixelFormat { LQ035Q1DH02_RGB565 = 0, LQ035Q1DH02_BGR565 = 1, LQ035Q1DH02_YUYV422 = 2 }
	Enumeration of the supported pixel formats. More...
enum	display_imageType { LQ035Q1DH02_TEST_PATTERN = 0, LQ035Q1DH02_PAINTED_IMAGE = 1, LQ035Q1DH02_CUSTOM = 2 }
	Enumeration of the supported image type. More...
enum	display_rev { LQ035Q1DH02_REV0 = 0, LQ035Q1DH02_REV1 = 1 }
	Enumeration of the supported image orientation. More...
Functions
int	display_Init (display_t state, int horizontalLength, int verticalLength, enum dispaly_pixelFormat pixFormat, enum display_rev reverse, unsigned short dmaStartAddress1, isrDisp_t *pIsrDisp)
	Initializes the LQ035Q1DH02 LCD System.
int	display_imageShow (display_t state, unsigned short displayScreen)
	Image Display.
int	display_imageShowDone (display_t *state)
	Image Show Complete.
int	display_slackGet (display_t *state)
	Slack Get.
int	display_statsGet (display_t state, unsigned int nrUpdates, unsigned int *nrSame)
	statistic get
int	dispLQ035Q1DH02_pixelPut (display_t *state, unsigned char red, unsigned char green, unsigned char blue, unsigned short x_pos, unsigned short y_pos)
	Pixel Plot.
int	display_Release (display_t *state)
	Release the LQ035Q1DH02 LCD System.
Variables
display_t	displayState [LQ035Q1DH02_NUMBERS]

Detailed Description

The file contains function prototypes for the nuggets and macros related to LQ035Q1DH02DHO2 LCD.

Version:: 1.8

Date:: 20120329

Author:: C. Lavania

Organization: The Learning Labs

Tested: Compiler bfin-elf-gcc; Output format Bare Metal Elf; Target TLL6527M V1.2

Revised: 20120329, Author: C. Lavania, Notes: Cleaned up, added macros for blank lines

Revised: 20120328, Author: C. Lavania, Notes: Modified the state variable structure to include the start address of the passive buffer

Revised: 20120327, Author: C. Lavania, Notes: Moved macros for conversion from RGB888 to RGB565 and RGB565 to BGR565, to the FB layer, modified the exposed function prototypes and the state structure to avoid usage of 3 buffers (2 DMA and 1 extra),

Revised: 20120322, Author: C. Lavania, Notes: Cleaned up, added enum for image orientation, and added macros for BGR and REV bits in register 01 of LCD

Revised: 20120321, Author: C. Lavania, Notes: Cleaned up

Revised: 20120321, Author: C. Lavania, Notes: Modified state structure and function prototypes.

Revised: 20120206, Author: C. Lavania, Notes: Added Nuggets, macros for pixel format conversion

Revised: 20111124, Author: C. Lavania, Notes: Ported from VDSP to GNU

Created: 20090204, Author: D. Kiran, Notes: Created the Initial Version

References:

1. ADSP-BF52x Blackfin Processor Hardware Reference, Revision 1.0, March 2010

Define Documentation

#define BACKLIGHT_OFF 0

#define BACKLIGHT_ON 1

#define blackcolor 0x0000

#define BLANKING_LINES 4

#define bluecolor 0x0010

#define CMD 0x01

#define cyancolor 0x7ff

#define DATA 0x02

#define DISPLAY_HEIGHT 240

#define DISPLAY_WIDTH 320

#define ERROR -1

#define greencolor 0x07e0

#define HSYNC_DELAY 7

#define HSYNC_PERIOD 336

#define HSYNC_WIDTH 2

#define LCD_ACTIVE_LINES_PER_FRAME 240

#define LCD_ACTIVE_PIXELS_PER_LINE 320

#define LQ035Q1DH02_BGR 0x08

#define LQ035Q1DH02_NUMBERS 1

#define LQ035Q1DH02_REV 0x20

#define magentacolor 0xf81f

#define PORT_CFG_01 0x10

#define PORT_DIR_TRNS 0x02

#define POST_BLANKING_LINES 2

#define PRE_BLANKING_LINES 2

#define pSPI_BAUDRATE 0xFFC00514

#define redcolor 0xf800

#define SPI_CLOCK_SPEED 5000000

#define SPI_MODEFAULT_ERR -3

#define SPI_TRANSMISSION_ERR -2

#define SUCCESS 0

#define TIMEOUT -4

#define TIMOD01 0x01

#define TMODE_PWMOUT 0x0001

#define TOTAL_FRAMES 200

#define V_LINES 244

#define VSYNC_PERIOD HSYNC_PERIOD*V_LINES

#define VSYNC_WIDTH 2

#define whitecolor 0xffff

#define XFR_TYPE_11 0x0c

#define yellowcolor 0xffe0

Typedef Documentation

typedef struct display_frameBufferDescr_s display_frameBufferDescr_t

Enumeration Type Documentation

enum dispaly_pixelFormat

Enumeration of the supported pixel formats.

Enumerator:

LQ035Q1DH02_RGB565
LQ035Q1DH02_BGR565
LQ035Q1DH02_YUYV422

enum display_imageType

Enumeration of the supported image type.

DEFAULT = Displays the Color Bar Pattern STATE_VARIABLE = Displays Contents of state->buffer CUSTOM = Displays image passed as parameter

Enumerator:

LQ035Q1DH02_TEST_PATTERN
LQ035Q1DH02_PAINTED_IMAGE
LQ035Q1DH02_CUSTOM

enum display_rev

Enumeration of the supported image orientation.

Enumerator:

LQ035Q1DH02_REV0
LQ035Q1DH02_REV1

Function Documentation

int display_imageShow	(	display_t *	state,
		unsigned short *	displayScreen
	)

Image Display.

This function is responsible to setup the DMA to display the new image Note : This function needs to be called each time a new image needs to be displayed on the screen

Pre-conditions:

display_Init is successful

Post condtions:

Displays image on screen

Parameters:

Parameters:

	state	address of LCD state variable
	displayScreen	the next frame to be displayed

Returns:: int status (0 for success, -1 for failure)

int display_imageShowDone ( display_t * state )

Image Show Complete.

Blocks until last display_imageShow has completed. If no imageShow is pending, call returns immediately.

Pre-conditions:

display_Init is successful

Post condtions:

Parameters:

Parameters:

state

address of LCD state variable

Returns:: int status (0 for success, -1 for failure)

int display_Init	(	display_t *	state,
		int	horizontalLength,
		int	verticalLength,
		enum dispaly_pixelFormat	pixFormat,
		enum display_rev	reverse,
		unsigned short *	dmaStartAddress1,
		isrDisp_t *	pIsrDisp
	)

Initializes the LQ035Q1DH02 LCD System.

This function initializes LCD System including related Timer, PPI, DMA Systems.

Pre-conditions:

None.

Post condtions:

Setups the LCD System.

Parameters:

Parameters:

	state	address of LCD state variable
	horizontalLength	width of the frame (in pixels)
	verticalLength	height of the frame (in pixels)
	pixFormat	pixel is RGB565 or BGR565 or YUYV422
	reverse	orientation of the image (0 for reverse and 1 for normal)
	dmaStartAddress1	memory location of DMA buffer 1
	dmaStartAddress2	memory location of DMA buffer 2

Returns:: int status (0 for success, -1 for failure)

int display_Release ( display_t * state )

Release the LQ035Q1DH02 LCD System.

This function releases LCD System including related Timer, PPI, DMA Systems.

Pre-conditions:

display_Init is successful

Post condtions:

LCD System Released.

Parameters:

Parameters:

state

address of LCD state variable

Returns:: int status (0 for success, -1 for failure)

int display_slackGet ( display_t * state )

Slack Get.

Returns nanoSec until pending image switch is executed, 0 if no switch is pending.

Pre-conditions:

display_Init is successful

Post condtions:

Parameters:

Parameters:

state

address of LCD state variable

Returns:: 0.01 % of time between new frames => 3000 means 30% time left

int display_statsGet	(	display_t *	state,
		unsigned int *	nrUpdates,
		unsigned int *	nrSame
	)

statistic get

gathers display statistics nrUpdates number of images updated nrSame number of identical images displayed

Pre-conditions:

display_Init is successful

Post condtions:

Parameters:

Parameters:

state

address of LCD state variable

Returns:: int status (0 for success, -1 for failure)

int dispLQ035Q1DH02_pixelPut	(	display_t *	state,
		unsigned char	red,
		unsigned char	green,
		unsigned char	blue,
		unsigned short	x_pos,
		unsigned short	y_pos
	)

Pixel Plot.

This function plots a pixel at the given location with given color

Pre-conditions:

display_Init is successful

Post condtions:

Pixel Plotted

Parameters:

Parameters:

	state	address of LCD state variable
	red	red value of the color
	green	green value of the color
	blue	blue value of the color
	x_pos	X Coordinate (in pixels)
	y_pos	Y Coordinate (in pixels)

Returns:: int status (0 for success, -1 for failure)

Variable Documentation

display_t displayState[LQ035Q1DH02_NUMBERS]
