inc/bufferPool.h File Reference

• manages a fixed size buffer pool for chunks

More...

#include "queue.h"
#include "isrDisp.h"
#include <chunk.h>

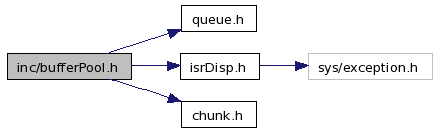

Include dependency graph for bufferPool.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	bufferPool_t
	bufferPool object More...
Defines
#define	CHUNK_NUM_MAX   (32)
	maximum number of chunks managed in this bufffer pool since we use static allocation, one number for all
Functions
int	bufferPool_init (bufferPool_t *pThis)
	Initialize buffer pool initialize freeList, populate with chunks.
int	bufferPool_acquire (bufferPool_t *pThis, chunk_t **ppChunk)
	Get a chunk from the buffer pool.
int	bufferPool_release (bufferPool_t *pThis, chunk_t *pChunk)
	Release chunk into the free list non blocking error on null passed.
int	bufferPool_is_empty (bufferPool_t *pThis)
	Returns true if buffer pool is empty.

---

Detailed Description

• manages a fixed size buffer pool for chunks

Target: TLL6537v1-1 Compiler: VDSP++ Output format: VDSP++ "*.dxe"

Author:

Rohan Kangralkar

Date:

03/15/2009

LastChange:

Id

bufferPool.h 1069 2013-02-25 18:19:21Z ovaskevi

---

Define Documentation

#define CHUNK_NUM_MAX   (32)

maximum number of chunks managed in this bufffer pool since we use static allocation, one number for all

---

Function Documentation

int bufferPool_acquire	(	bufferPool_t *	pThis,
		chunk_t **	ppChunk
	)

Get a chunk from the buffer pool.

Parameters:

Parameters:

	pThis	pointer to queue data structure
	ppChunk	pointer pointer to chunk acquired (null if empty)

Returns:

PASS/Zero on success. Negative FAIL/value on failure.

int bufferPool_init

(

bufferPool_t *

pThis

)

Initialize buffer pool

• initialize freeList, populate with chunks.

Parameters:

Parameters:

pThis

pointer to buffer pool data structure

Returns:

PASS/Zero on success. FAIL/Negative value on failure.

int bufferPool_is_empty

(

bufferPool_t *

pThis

)

Returns true if buffer pool is empty.

Parameters:

Parameters:

pThis

pointer to queue data structure

Returns:

true (non-zero) if emtpy, 0 if chunks available

int bufferPool_release	(	bufferPool_t *	pThis,
		chunk_t *	pChunk
	)

Release chunk into the free list

• non blocking
• error on null passed.

Parameters:

Parameters:

	pThis	pointer to queue data structure
	pChunk	pointer to chunk to release

Returns:

PASS/Zero on success. FAIL/Negative value on failure.

---
