src/bf52xI2cMaster.c File Reference

#include "tll_common.h"
#include "bf52xI2cMaster.h"
#include "bf52x_uart.h"

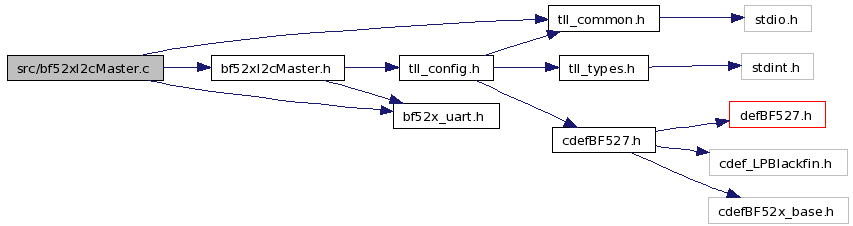

Include dependency graph for bf52xI2cMaster.c:

Functions
int	bf52xI2cMaster_init (unsigned char is_sccb, int clock)
	Initializes the I2C interface as master.
int	bf52x_i2c_master_probe (unsigned char addr)
	Probes for the I2C slave device.
int	bf52xI2cMaster_send (bf52x_i2c_cmd_data_t *i2c_trans_p)
	Send data.
int	bf52xI2cMaster_receive (bf52x_i2c_cmd_data_t *i2c_trans_p)
	Receive data.

---

Function Documentation

int bf52x_i2c_master_probe

(

unsigned char

addr

)

Probes for the I2C slave device.

This function probes and checks if the specified slave device is present or not.

Pre-conditions:

• None.

Post condtions:

• Setups the interface for further I2C data transactions.

Parameters:

Parameters:

sccb

- Should be non-zero to configure the interface as SCCB interface. Zero for normal I2C interface.

Returns:

Zero if the device is probed and available. Else negative value.

int bf52xI2cMaster_init	(	unsigned char	is_sccb,
		int	clock
	)

Initializes the I2C interface as master.

This function initializes the TWI interface as master.

Pre-conditions:

• None.

Post condtions:

• Setups the interface for further I2C data transactions.

Parameters:

Parameters:

sccb

- 0 to use standard I2C interface 1 to use standard SCCB interface.

Returns:

TLL_STATUS_SUCCESS or TLL_STATUS_INVALID

int bf52xI2cMaster_receive

(

bf52x_i2c_cmd_data_t *

i2c_trans_p

)

Receive data.

This function receives the data specified into the bf52x_i2c_cmd_data_t data structure.

Pre-conditions:

• The data buffer to be transffered should be programmed and datalen varaibles.

Post condtions:

• Receives the data.

Parameters:

Parameters:

i2c_trans

- Holds the transaction information.

Returns:

Zero if the device data transfer was successful. Else negative value.

int bf52xI2cMaster_send

(

bf52x_i2c_cmd_data_t *

i2c_trans_p

)

Send data.

This function sends the data specified in the bf52x_i2c_cmd_data_t data structure.

Pre-conditions:

• The data to be transfered should be stored in data and data length should be stored in datalen variables.
• The restart specifies if restart is required.
• I2C interface has to be initialized

Post condtions:

• Transfers the data.

Parameters:

Parameters:

i2c_trans

- Holds the transaction information.

Returns:

Zero if the device data transfer was successful. Else negative value.

---
